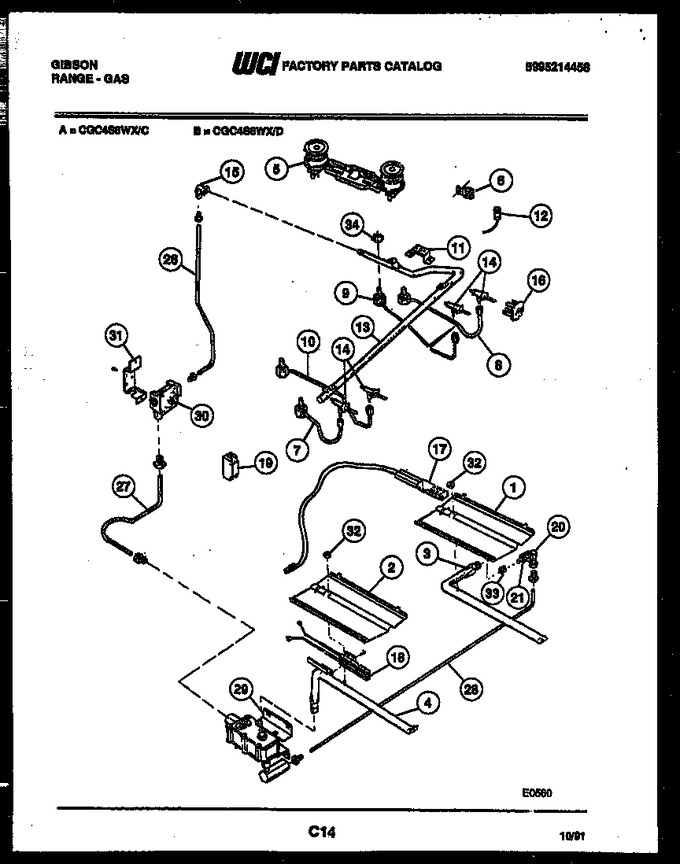

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303210379		Baffle, Broil				$ 175.88
2	3131284		Baffle-oven				$ 155.77
3	08067935		Burner-broiler				$ 142.59
4	3131290		Burner-oven		Appelez-nous	-
5	5303131147		Burner-top-double		Appelez-nous	-
6	3016993		Retainer Ignitor (2)		Appelez-nous	-
7	5303131970		Burner-tube, Lf		Appelez-nous	-
8	5303131970		Burner-tube, Rf		Appelez-nous	-
9	5303011569		Burner-tube-rr		Appelez-nous	-
10	5303011570		Burner-tube-lr		Appelez-nous	-
11	3200277		Bracket Burner Mtg		Appelez-nous	-
12	3200276		Ignitor Top		Appelez-nous	-
13	3018861		Manifold Pipe		Appelez-nous	-
14	5303017542		Valve-top Pos (4)		Appelez-nous	-
15	08067948		Elbow 1/2 Np 9/16-24		Appelez-nous	-
16	3131568		Switch - Ignitor (4)		Appelez-nous	-
17	5303935068		Ignitor, Broiler Burner   (Replaces: 5308067970)				$ 166.55
18	5303935066		Ignitor, Oven   (Replaces: 5303131300)			Immediately	$ 59.58
19	5303200669		Ignitor-module		Appelez-nous	-
20	08067979		Mixer-elbow		Appelez-nous	-
21	154079601		Nut Hex   (Replaces: 5303013272)				$ 0.41
26	5303208495		Tube Alum 3/8 W/ Fitting		Appelez-nous	-
27	5303208494		Tube Alum 3/8 W/ Fitting		Appelez-nous	-
28	5303208493		Tube Alum 3/8 W/ Fitting		Appelez-nous	-
29	5303208499		Valve-safety-dual			Immediately	$ 559.67
30	5303280582		Control-regulator		Appelez-nous	-
31	08067934		Bracket-regulator		Appelez-nous	-
32	154079601		Nut   (Replaces: 5303013272)				$ 0.41
33	08068015		Spud-50		Appelez-nous	-
34	3013279		Nut, Special				$ 2.34
15A	3131148		Nut Compressor (4) (non-illustrated)		Appelez-nous	-
