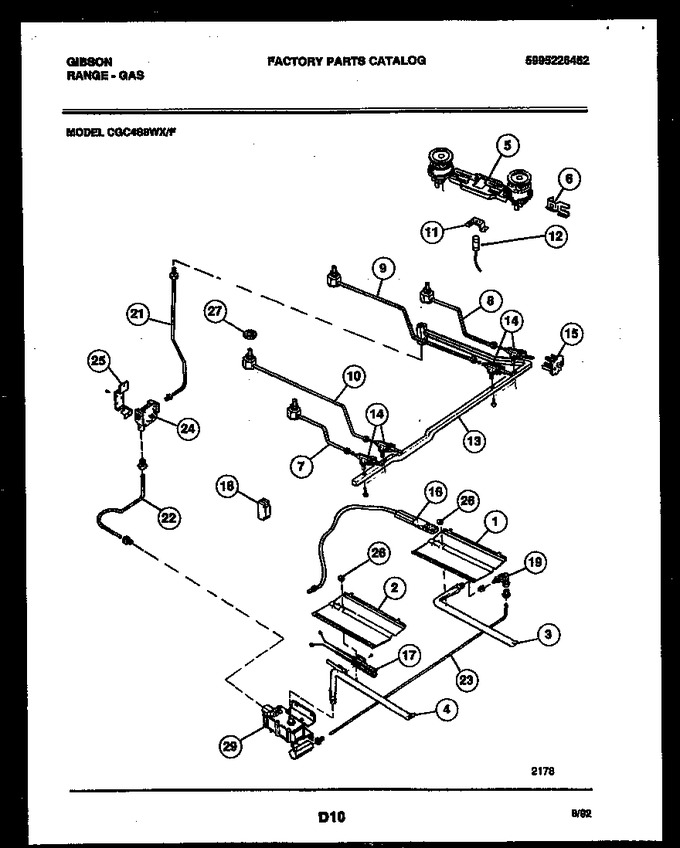

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303210379		Baffle, Broil				$ 175.88
2	3131284		Baffle-oven				$ 155.77
3	08067935		Burner-broiler				$ 142.59
4	3131290		Burner-oven		Appelez-nous	-
5	5303131147		Burner-top-double		Appelez-nous	-
6	3016993		Retainer Ignitor (2)		Appelez-nous	-
7	5303283666		Burner-tube Lf		Appelez-nous	-
8	5303283665		Burner-tube Rf		Appelez-nous	-
9	5303283667		Burner-tube Rr		Appelez-nous	-
10	5303283668		Burner-tube Lr		Appelez-nous	-
11	3200277		Bracket Burner Mtg		Appelez-nous	-
12	3200276		Ignitor Top		Appelez-nous	-
13	5303271375		Manifold Pipe		Appelez-nous	-
14	316031900		Valve-top Pos (4)		Appelez-nous	-
15	316032001		Switch-ignitor (4)				$ 69.35
16	5303935068		Ignitor, Broiler Burner   (Replaces: 5308067970)				$ 166.55
17	5303935066		Ignitor, Oven   (Replaces: 5303131300)			Immediately	$ 59.58
18	5303200669		Ignitor-module		Appelez-nous	-
19	08067979		Mixer-elbow		Appelez-nous	-
21	5303208495		Tube Alum 3/8 W/ Fitting		Appelez-nous	-
22	5303208494		Tube Alum 3/8 W/ Fitting		Appelez-nous	-
23	5303208493		Tube Alum 3/8 W/ Fitting		Appelez-nous	-
24	5303280582		Control-regulator		Appelez-nous	-
25	08067934		Bracket-regulator		Appelez-nous	-
26	154079601		Nut   (Replaces: 5303013272)				$ 0.41
27	3013279		Nut, Special				$ 2.34
29	5303208499		Valve-safety-dual			Immediately	$ 559.67
