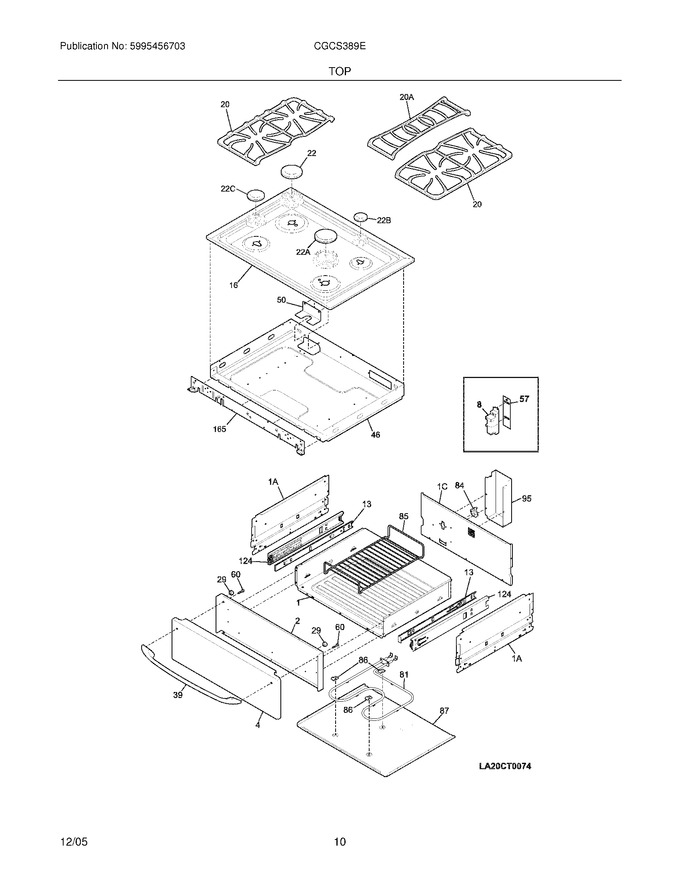

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318304401		Drawer,body Assembly		Appelez-nous	-
2	318303901		Panel,drawer ,black ,inner		Appelez-nous	-
4	318299901		Panel,drawer ,white ,front		Appelez-nous	-
13	318259507		Glide,warmer ,inner Rh   (Replaces: 318259501)			Immediately	$ 69.01
16	318320000		Maintop Assembly,white				$ 278.84
20	316424605		Grate,gray ,(2)				$ 275.47
22	316219901		Cap,14k Burner ,grey				$ 163.38
29	318147430		Bumper,(2)				$ 18.95
39	316270201		Handle,door ,white			Immediately	$ 128.29
46	318291401		Box,burner		Appelez-nous	-
50	318328500		Cover,burner Box		Appelez-nous	-
57	318295610		Panel,service		Appelez-nous	-
60	5304453223		Screw,handle Mtg ,10-14 X 1.82 ,(2)			Immediately	$ 13.19
85	807328301		Rack,warmer Drawer   (Replaces: 318257600)				$ 87.21
86	316095800		Clip,hold Down ,warmer Element				$ 9.93
87	318300102		Panel,warmer Drawer ,lower   (Replaces: 318300100)				$ 106.22
95	318303800		Shield,wire		Appelez-nous	-
124	316105501		Glide,warmer Drawer ,outer/rh & Lh ,(2)				$ 90.72
165	318227504		Plate,mounting		Appelez-nous	-
13A	318259506		Glide,warmer ,inner Lh   (Replaces: 318259500)				$ 69.01
1A	318300003		Panel,warmer Drawer ,side ,(2)   (Replaces: 318300000)				$ 56.13
1C	318300300		Panel,warmer Drawer ,rear		Appelez-nous	-
20A	318307105		Grate,gray ,center		Appelez-nous	-
22A	316271901		Cap,17k Burner ,gray				$ 113.72
22B	316206601		Cap,5k Burner ,gray				$ 104.11
22C	316213501		Cap,9.5k Burner ,gray				$ 104.05
F8	5304505695		Module,spark   (Replaces: 316135701)			Immediately	$ 68.16
F81	318255301		Element,warmer Drawer   (Replaces: 318255300)				$ 105.42
F84	318005108		Thermostat			Immediately	$ 81.14
NI	5303325171		Washer,plastic		Appelez-nous	-
NI	318163600		Cleaner,cooktop		Appelez-nous	-
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303300265		Screw,8-18 X 1/2 ,(2)				$ 15.17
NI	5304453707		Screw, 8-32 X 3/8   (Replaces: 5303311333)			Immediately	$ 15.92
NI	318199749		Wiring Harness,drawer		Appelez-nous	-
