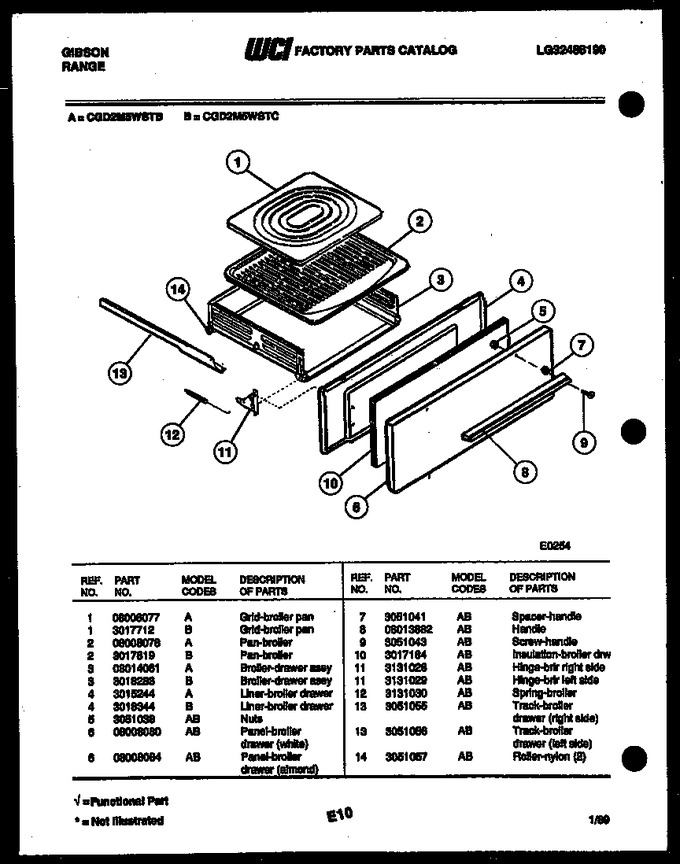

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08008077 | Grid-broiler Pan |
|
- | |||||
| 2 | 08008078 | Pan - Broiler |
|
- | |||||
| 3 | 08014061 | Broiler-drawer Assy |
|
- | |||||
| 4 | 3015244 | Liner-broiler Drawer |
|
- | |||||
| 5 | 3051038 | Nuts |
|
- | |||||
| 6 | 08008084 | Panel-broiler (almond) |
|
- | |||||
| 6 | 08008080 | Panel-broiler (white) |
|
- | |||||
| 7 | 3051041 | Spacer-handle |
|
- | |||||
| 8 | 08013882 | Handle |
|
- | |||||
| 9 | 3051043 | Screw - Handle |
|
- | |||||
| 10 | 3017184 | Insulation-broiler Drw |
|
- | |||||
| 11 | 3131029 | Hinge-brlr Left Side |
|
- | |||||
| 11 | 3131028 | Hinge-brlr Right Side |
|
- | |||||
| 12 | 3131030 | Spring-broiler |
|
- | |||||
| 13 | 3051055 | Track-broiler Drawer (right Side) |
|
- | |||||
| 13 | 3051056 | Track-broiler Drawer (left Side) |
|
- | |||||
| 14 | 3051057 | Roller - Nylon (2) |
|
- |
