SELECT A DIAGRAM

01 - Backguard And Main Top


02 - Burner


03 - Body


04 - Oven Door


05 - Rotisserie , Griddle

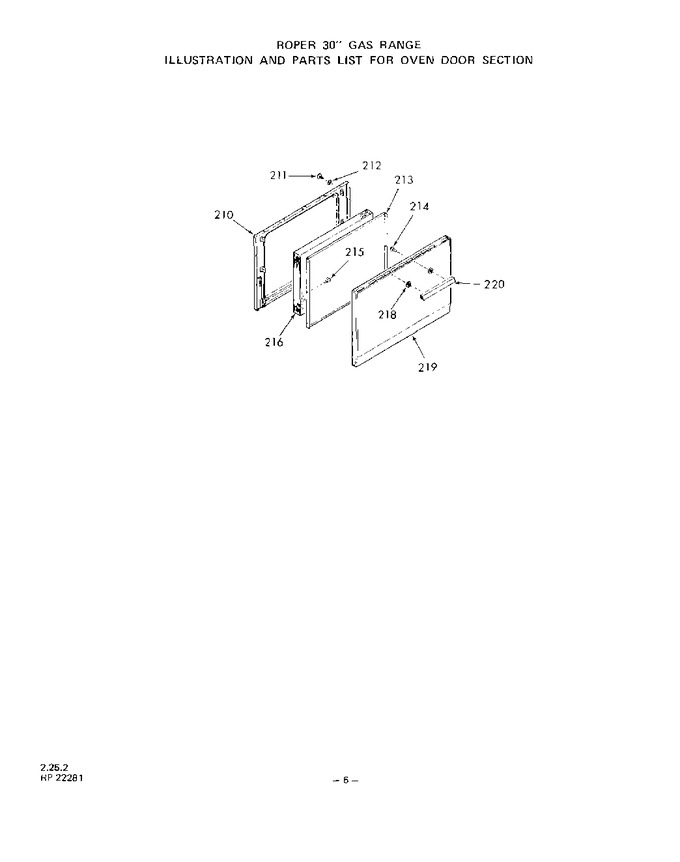

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
210	318526		Lining-oven Door		Appelez-nous	-
211	102376		Screw 10-32 X 1/2``		Appelez-nous	-
212	106462		Washer		Appelez-nous	-
213	318463		Retainer-oven Door Insulation		Appelez-nous	-
214	316365		Screw 10-32x7/16``		Appelez-nous	-
215	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 7.16
216	296142		Insulation-oven Door		Appelez-nous	-
218	302343		Spacer-door Handle		Appelez-nous	-
219	302075		Front Panel-oven Door (white)		Appelez-nous	-
219	308946		Front Panel-oven Door (almond)		Appelez-nous	-
220	309871		Door Handle		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
