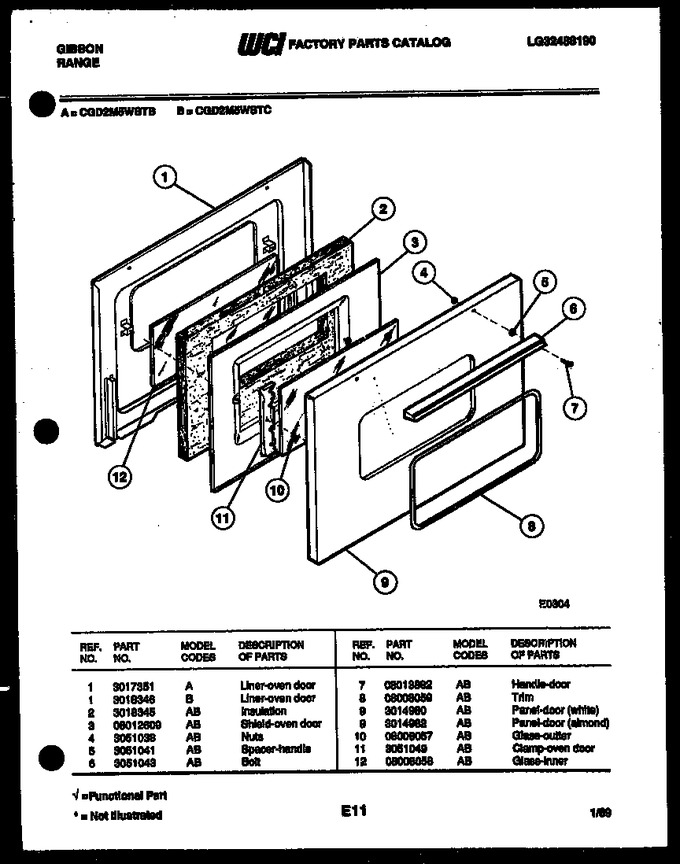

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3018346 | Liner-oven Door |
|
- | |||||
| 2 | 3018345 | Insulation |
|
- | |||||
| 3 | 08012609 | Shield-oven Door |
|
- | |||||
| 4 | 3051038 | Nuts |
|
- | |||||
| 5 | 3051041 | Spacer-handle |
|
- | |||||
| 6 | 3051043 | Bolt |
|
- | |||||
| 7 | 08013882 | Handle Door |
|
- | |||||
| 8 | 08008059 | Trim |
|
- | |||||
| 9 | 3014982 | Panel-door (almond) |
|
- | |||||
| 9 | 3014980 | Panel-door (white) |
|
- | |||||
| 10 | 08008057 | Glass-outter |
|
- | |||||
| 11 | 3051049 | Clamp-oven Door |
|
- | |||||
| 12 | 08008058 | Glass-inner |
|
- |
