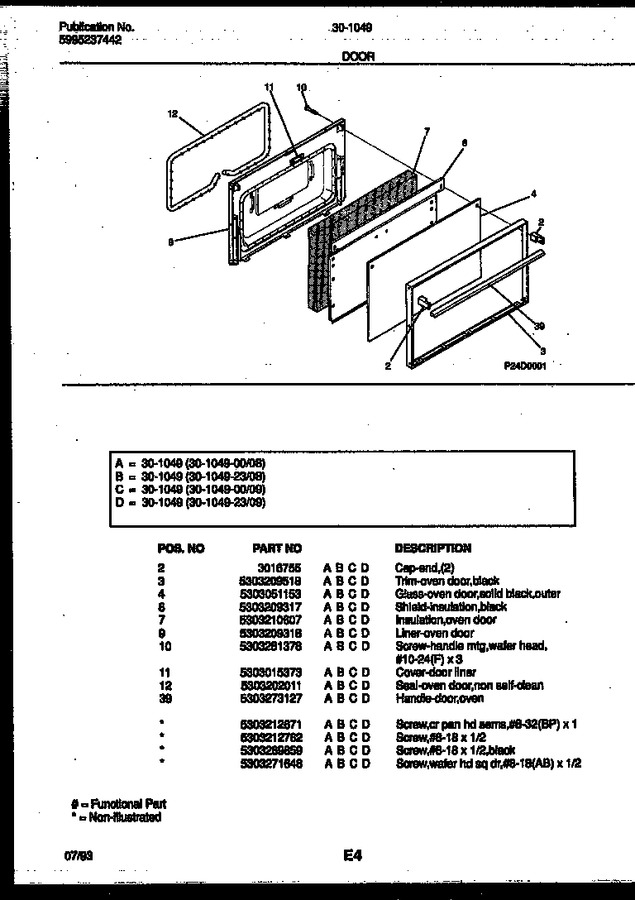

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	3016755		Cap, End (2)		Appelez-nous	-
3	5303209518		Trim-oven Door (black)		Appelez-nous	-
4	5303051153		Glass-oven Door, Solid Black, Outer		Appelez-nous	-
6	5303209317		Shield-insulation, Black		Appelez-nous	-
7	5303210607		Insulation, Oven Door		Appelez-nous	-
9	5303209318		Liner-oven Door		Appelez-nous	-
10	5303281378		Screw-handle Mtg, Wafer Head, 10-24(f) X 3				$ 13.60
11	5303015373		Cover-door Liner		Appelez-nous	-
12	5303202011		Seal-oven Door, Non Self-clean				$ 166.84
39	5303273127		Handle-door, Oven		Appelez-nous	-
*86790	5303271648		Screw, Wafer Hd Sq Dr, 8-18(ab) X 1/2			Immediately	$ 13.46
*86790	5303212671		Screw, Cr Pan Hd Sems, 8, 32(bp) X 1		Appelez-nous	-
*86790	5303212762		Screw,8-18 X 1/2		Appelez-nous	-
*86790	5303269859		Screw 8-18 X 1/2 Black		Appelez-nous	-
