SELECT A DIAGRAM

01 - Cover


03 - Control Panel


05 - Body

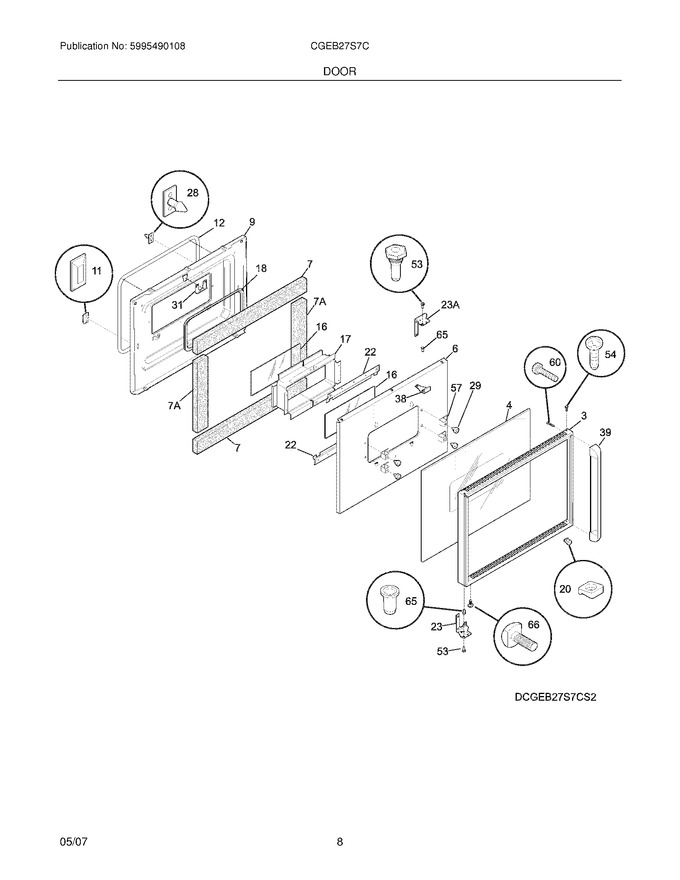

07 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318026128		Trim-oven Door,white				$ 371.55
4	318051618		Glass,oven Door ,white ,outer				$ 347.72
6	318073502		Shield,air Wash				$ 23.68
7	318362113		Insulation,door ,top & Bottom ,(2)		Appelez-nous	-
9	318048504		Liner-oven Door				$ 374.59
11	5303320493		Cover-hinge Cutout				$ 6.93
12	318053100		Seal-oven Door				$ 317.89
16	318042300		Glass-oven Door, Heat Barrier, (2)				$ 298.46
17	318042000		Spacer-glass		Appelez-nous	-
18	318293502		Gasket,door Glass Seal				$ 19.48
20	318113800		Spacer-door				$ 9.27
22	5303310511		Bar,glass Retainer		Appelez-nous	-
23	318074208		Hinge,oven Door ,lower				$ 216.51
28	318090210		Strike-door				$ 87.99
31	318065102		Latch-door				$ 58.81
38	318074801		Stop,door ,white				$ 39.95
39	318039901		Handle,oven Door ,white				$ 245.96
53	318074913		Pin,hinge   (Replaces: 318074912)			Immediately	$ 46.07
54	5303300265		Screw,8-18 X 1/2 ,(2)				$ 15.17
57	318172902		Stiffener Glass				$ 1.47
60	5303321221		Screw-handle, Black		Appelez-nous	-
65	318090122		Bushing,hinge				$ 25.19
66	318167101		Screw,door Lock				$ 38.94
23A	318074207		Hinge,oven Door ,upper				$ 259.63
7A	318362112		Insulation,door ,sides ,(2)		Appelez-nous	-
NI	5303325630		Lockwasher				$ 3.31
NI	5303321214		Washer, Lock		Appelez-nous	-
NI	5303325170		Nut-keps, 8-32		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
