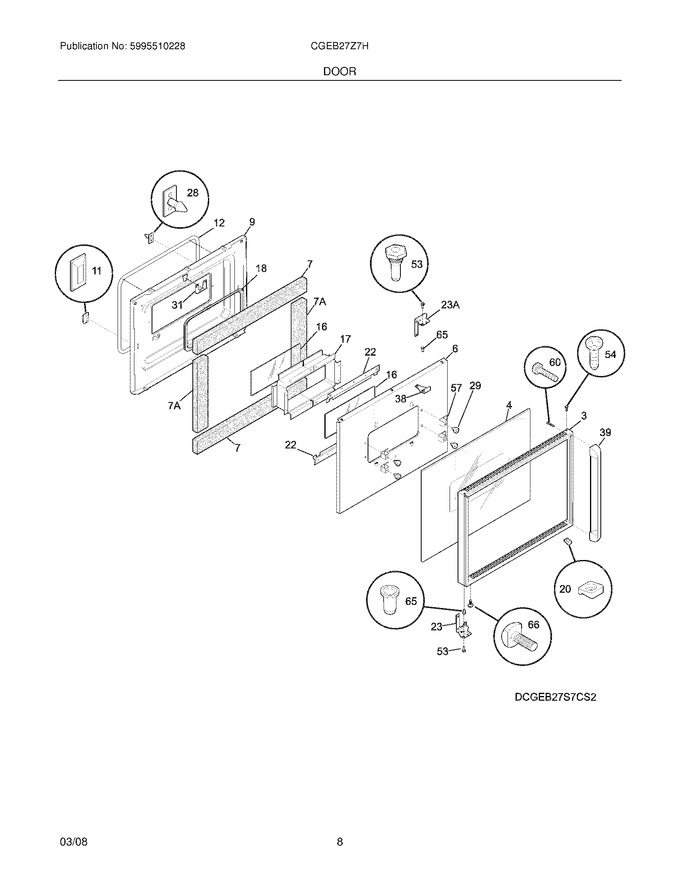

07 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318026127		Trim,oven Door ,black				$ 359.47
4	318051617		Glass,oven Door ,black ,outer				$ 235.60
6	318073502		Shield,air Wash				$ 23.68
7	318362113		Insulation,door ,top & Bottom ,(2)		Appelez-nous	-
9	318048504		Liner-oven Door				$ 374.59
11	5303320493		Cover-hinge Cutout				$ 6.93
12	318053100		Seal-oven Door				$ 317.89
16	318042300		Glass-oven Door, Heat Barrier, (2)				$ 298.46
17	318042001		Spacer,glass				$ 36.80
18	318293502		Gasket,door Glass Seal				$ 19.48
20	318113800		Spacer-door				$ 9.27
22	5303310511		Bar,glass Retainer		Appelez-nous	-
23	318074206		Hinge,oven Door ,black ,lower				$ 249.48
28	318090210		Strike-door				$ 87.99
31	318065102		Latch-door				$ 58.81
38	318074800		Stop-door, Black		Appelez-nous	-
39	318039900		Handle,oven Door ,black				$ 208.33
53	318074913		Pin,hinge ,black			Immediately	$ 46.07
54	5303308456		Screw,8-18 X 0.531 ,black				$ 10.06
57	318172902		Stiffener Glass				$ 1.47
60	5303321221		Screw-handle, Black		Appelez-nous	-
65	318090123		Bushing,hinge ,black				$ 11.29
66	318167101		Screw,door Lock				$ 38.94
23A	318074205		Hinge,oven Door ,black ,upper				$ 245.09
7A	318362112		Insulation,door ,sides ,(2)		Appelez-nous	-
NI	5303325630		Lockwasher				$ 3.31
NI	5303321214		Washer, Lock		Appelez-nous	-
NI	5303325170		Nut,keps ,8-32 ,(4)		Appelez-nous	-
