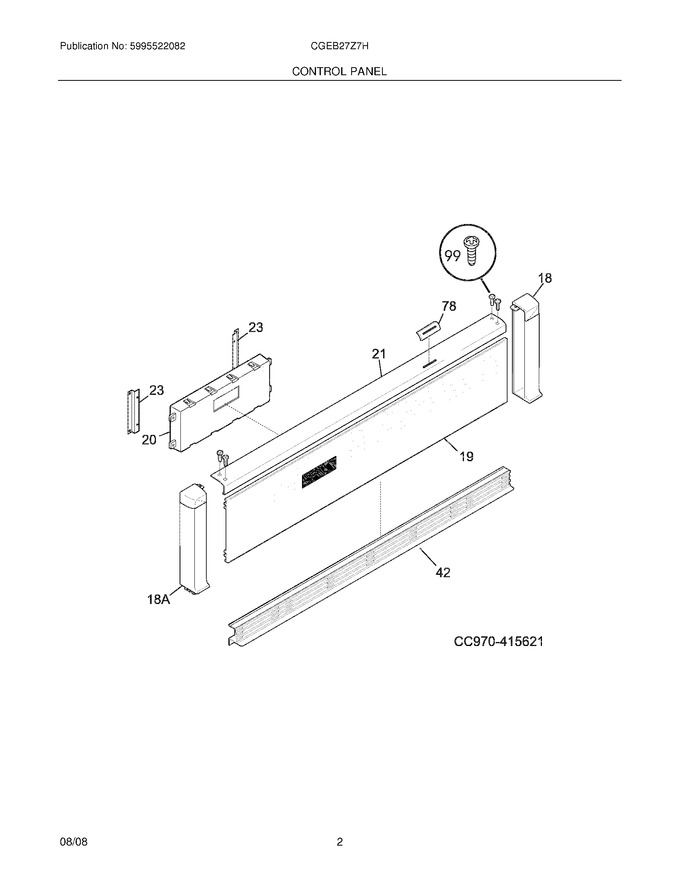

03 - Control Panel


05 - Body


07 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
18	5303311208		End Cap, White, Rh		Appelez-nous	-
21	5303311212		Trim,canopy ,white ,top				$ 238.98
23	318015404		Bracket,timer ,(2)		Appelez-nous	-
42	5303318709		Trim-vent, White		Appelez-nous	-
78	318037122		Cover,oven Vent ,white				$ 56.33
99	5303316956		Screw,6-32 X 3/8 ,white ,(2)		Appelez-nous	-
18A	5303311209		End Cap, White, Lh		Appelez-nous	-
F19	318030055		Panel,control ,white ,w/touch Cntl		Appelez-nous	-
F20	316418579		Clock/timer,electronic ,es350				$ 311.96
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303300265		Screw,8-18 X 1/2 ,(4)				$ 15.17
NI	5303311528		Screw,oval Hd Sq Dr ,6-20ab X 0.625 ,black		Appelez-nous	-
NI	3201861		Screw,6 X 0.375 ,(4)				$ 0.76
NI	5303131766		Screw,6-32 X 0.375 ,top Trim				$ 10.87
