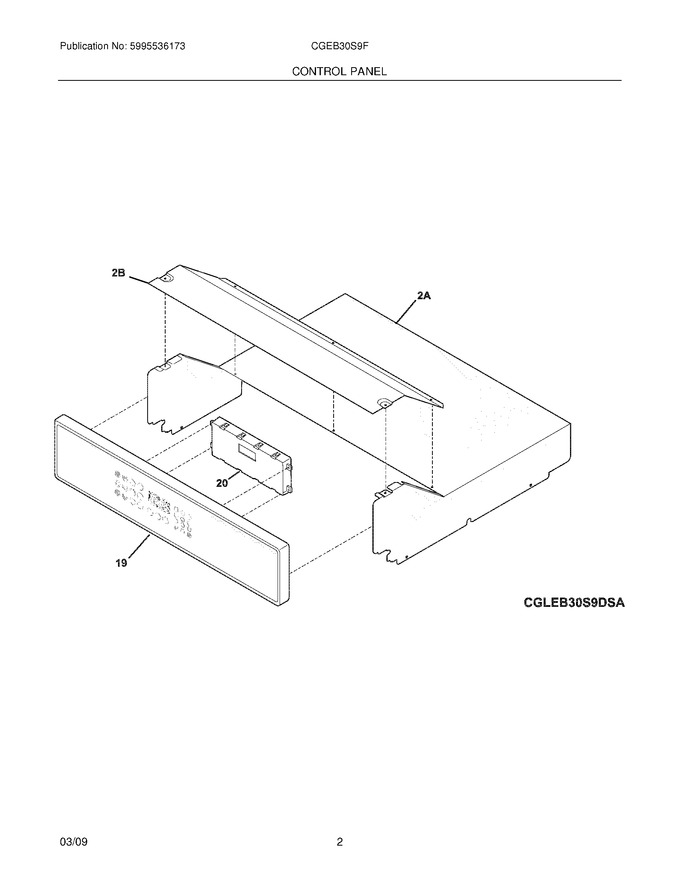

SELECT A DIAGRAM

01 - Cover


03 - Control Panel


05 - Body


07 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
19	318274665		Control Panel Assembly,glass ,white ,w/touch Pad				$ 418.50
2A	318257300		Shield,oven Top				$ 89.36
2B	318260100		Cover,box				$ 44.42
F20	316462839		Controller,electronic ,es510x			Immediately	$ 372.47
NI	5303311306		Screw,8-18 X 0.375 ,(6)		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89

    View Diagram in Separate Window       Print Part List
