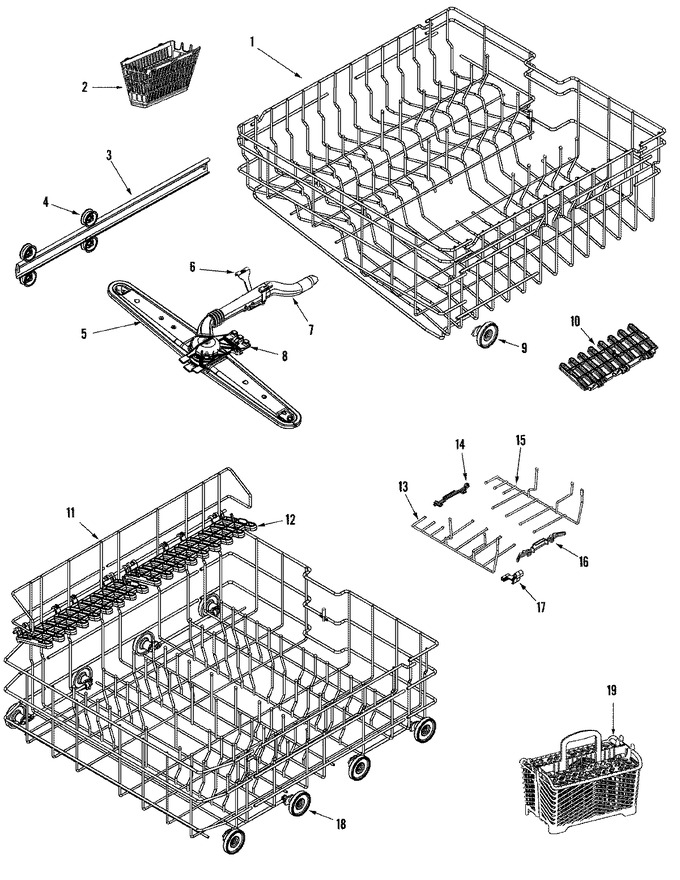

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	99002997		Rack Assembly (upr)	10	Appelez-nous	-
1	99003202		Rack Assembly (upr)----sub	23	Appelez-nous	-
1	99002905		Cap, Rack (dark Gray)	10			$ 23.63
2	99003001		Basket, Auxillary	10	Appelez-nous	-
3	99002621		Track, Rack	10			$ 56.82
3	WPW10261227		Stop, Rack (gray)   (Replaces: 99002623)	10		Immediately	$ 6.93
4	WP99002947		Shaft, Tub Wheel   (Replaces: 99002343)	10		Immediately	$ 10.58
4	WP99002947		Wheel, Tub   (Replaces: 99002622)	10		Immediately	$ 10.58
4	WPY912798		Washer, Tub Wheel   (Replaces: Y912798)	10			$ 6.90
5	99002624		Arm, Wash (upr)	10			$ 32.72
5	99002740		Screw, Truss Head (10-18x.75)	10			$ 6.24
6	99002945		Clip, Upr Wash Manifold (back)	10			$ 21.24
7	99002679		Wash Manifold Assy (upr)	10	Appelez-nous	-
8	99002669		Clip, Upr Wash Manifold (frt)	10			$ 5.84
9	WP99002781		Wheel Assembly (upr)   (Replaces: 99002781)	10			$ 11.15
10	99003006		Shelf, Rack (upr)	10	Appelez-nous	-
11	99002905		Cap, Rack (dark Gray)	10			$ 23.63
11	99002998		Rack Assembly (lwr)	10	Appelez-nous	-
12	99003002		Shelf, Rack (lwr)	10	Appelez-nous	-
13	99002717		Tines, Convertible (frt)	10	Appelez-nous	-
14	WP99003003		Pivot, Convertible Tine(gray)   (Replaces: 99003003)	10		Immediately	$ 7.22
15	99002718		Tines, Convertible (rear)	10	Appelez-nous	-
16	99003004		Latch, Convertible Tine	10			$ 6.62
17	99003005		Latch, Secondary Conv. Tine	10	Appelez-nous	-
18	WP99002780		Wheel Assembly (lwr)   (Replaces: 99002780)	10		Immediately	$ 9.90
19	99003000		Cover, Silverware Basket	10	Appelez-nous	-
19	WP6-918873		Basket, Silverware (half)   (Replaces: 99002684)	10		Immediately	$ 54.28
19	99002999		Basket, Silverware (w/cover)	10	Appelez-nous	-
