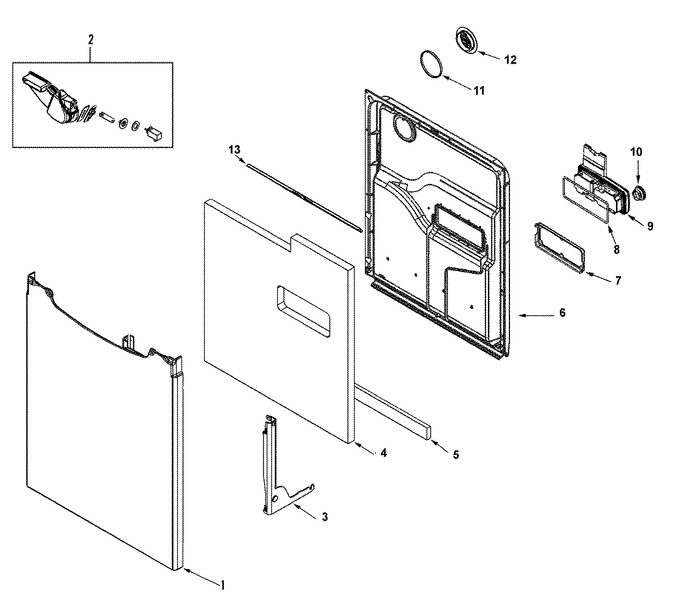

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	99002768		Panel, Deco (w/damper-blk)	10	Appelez-nous	-
2	99002673		Vent Housing Assembly	10	Appelez-nous	-
3	99001075		Screw	10			$ 5.81
3	WPW10118637		Bracket, Hinge (rt)   (Replaces: 99002930)	10			$ 233.73
3	99002929		Bracket, Hinge (lt)	10	Appelez-nous	-
4	Y99002587		Insulation, Door	10	Appelez-nous	-
5	903233		Foam Strip, Insulation	10	Appelez-nous	-
6	99003424		Door, Inner W/damper	10	Appelez-nous	-
6	99003540		Door Liner, Secondary	31	Appelez-nous	-
6	99003541		Bracket, Secondary Door Liner	31	Appelez-nous	-
6	Y912620		Screw	10			$ 5.48
6	99003482		Foam Strip(short)	31			$ 7.75
6	99003481		Foam Strip(long)	31			$ 8.34
7	99003316		Bracket, Dispenser Mounting	10	Appelez-nous	-
7	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	10		Immediately	$ 6.90
8	99002270		Seal, Base	10			$ 59.76
9	99003321		Detergent/rinse Aid Dispenser	10	Appelez-nous	-
10	99002992		Knob, Rinse Aid (w/o-ring)	10			$ 19.99
11	99002186		Seal, Door Vent	10			$ 7.89
12	99002590		Bezel, Door Vent	10			$ 72.78
13	99002586		Reinforcement, Inner Door	10	Appelez-nous	-
13	Y912620		Screw	10			$ 5.48
