SELECT A DIAGRAM

01 - Backguard And Main Top


02 - Burner

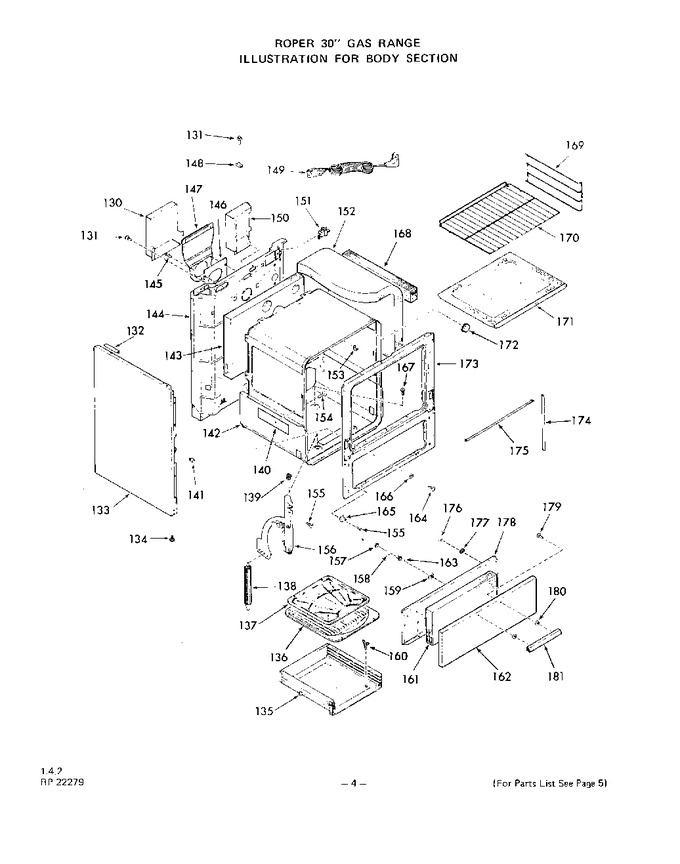

03 - Body


04 - Oven Door


05 - Rotisserie , Griddle


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
130	296011		Shield - Flue Deflector		Appelez-nous	-
131	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 7.16
132	303513		Pad-body Side (2 Required)		Appelez-nous	-
133	316984		Body Side (almond-right)		Appelez-nous	-
133	316979		Body Side (white-left)		Appelez-nous	-
133	316978		Body Side (white-right)		Appelez-nous	-
133	316985		Body Side (almond-left)		Appelez-nous	-
134	69065		Leg Leveler (4 Required)		Appelez-nous	-
135	305259		Broiler Drawer		Appelez-nous	-
136	290171		Broiler Pan		Appelez-nous	-
137	313071		Broiler Pan Grid		Appelez-nous	-
138	308735		Spring-oven Door (2 Required)		Appelez-nous	-
139	304980		Nut-retainer (2 Required)		Appelez-nous	-
140	314487		Retainer-insulation (rt. Or Lt.)		Appelez-nous	-
141	296006		Grommet - Screw (8 Req.)		Appelez-nous	-
142	315365		Oven Body		Appelez-nous	-
143	296140		Insulation - Oven Back		Appelez-nous	-
144	318437		Main Back		Appelez-nous	-
145	DE81-07393A		Screw 10 - 32 X 17/32``   (Replaces: 102428)				$ 174.11
146	296010		Gasket-flue Deflector		Appelez-nous	-
147	300917		Flue Deflector		Appelez-nous	-
148	106767		Clip		Appelez-nous	-
149	235822		Range Service Cord		Appelez-nous	-
150	318468		Wire Shield-oven Light		Appelez-nous	-
151	232150		Disconnect		Appelez-nous	-
152	296139		Insulation - Oven Top & Sides (1 Piece)		Appelez-nous	-
153	115533		Clip-thermostat Bulb (2 Required)		Appelez-nous	-
154	296097		Dart-button Head (2 Required)		Appelez-nous	-
155	112013		Screw 10-32 X 5/8``		Appelez-nous	-
156	303133		Hinge-oven Door (left)		Appelez-nous	-
156	303132		Hinge - Oven Door (right)		Appelez-nous	-
157	239764		Keps Nut		Appelez-nous	-
158	99279		Washer		Appelez-nous	-
159	306961		Catch-broiler Door Strike		Appelez-nous	-
160	278797		Thumbscrew-rt. Or Lt.		Appelez-nous	-
161	W10820036		Insulation-broiler Door (2 Required)   (Replaces: 296141)			Immediately	$ 27.45
162	W11169039		Front Panel-broiler Door (white)   (Replaces: 302062)			Immediately	$ 182.83
162	308942		Front Panel-broiler Door (almond)		Appelez-nous	-
163	24668		Strike-broiler Door		Appelez-nous	-
164	WP303896		Screw 8abx1``   (Replaces: 303896)			Immediately	$ 66.12
165	285675		Hinge-broiler Door (lt. Or Rt.)				$ 180.31
166	303963		Washer		Appelez-nous	-
167	289730		Shoulder Screw 10-32x1/2``		Appelez-nous	-
168	W10820036		Insulation-burner Box Bottom Side (rt. Or Lt.)   (Replaces: 296141)			Immediately	$ 27.45
169	305409		Guide-oven Rack (rt. Or Lt.)		Appelez-nous	-
170	305408		Oven Rack (2 Required)		Appelez-nous	-
171	296069		Oven Bottom		Appelez-nous	-
172	101063		Plug Button		Appelez-nous	-
173	316994		Front Frame		Appelez-nous	-
174	314573		Side Seal-oven Door (rt. Or Lt.)		Appelez-nous	-
175	314574		Top Seal-oven Door		Appelez-nous	-
176	239113		Screw 10-32x3/8``		Appelez-nous	-
177	69603		Lockwasher		Appelez-nous	-
178	302267		Lining-broiler Door		Appelez-nous	-
179	316365		Screw 10-32x7/16``		Appelez-nous	-
180	302343		Spacer-door Handle		Appelez-nous	-
181	309871		Door Handle		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
