SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Body


07 - Top/drawer

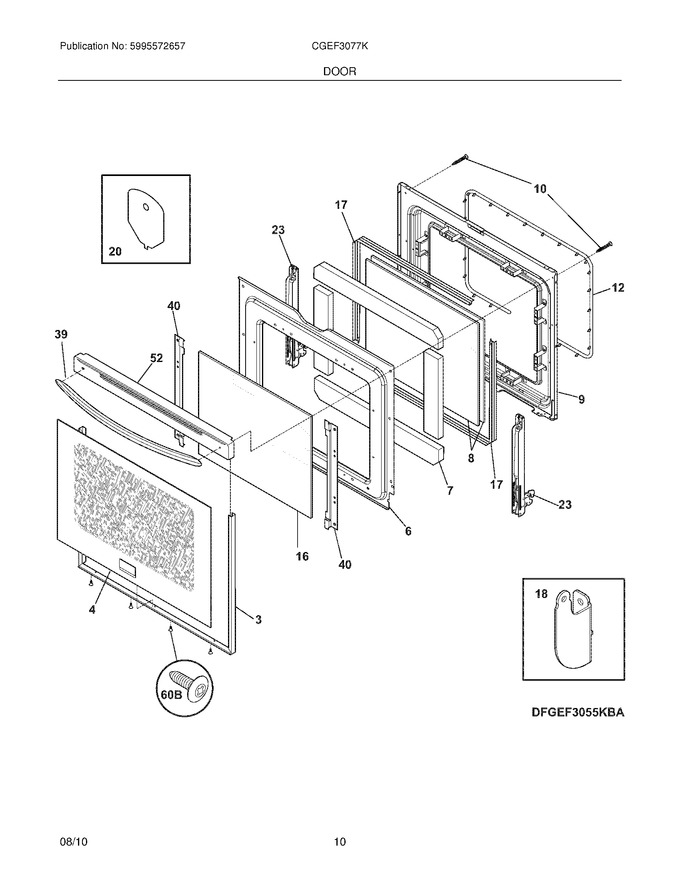

09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303935318		Trim Kit-door,3 Sided ,white ,w/tape			Immediately	$ 83.64
4	316566404		Glass Assembly,outer ,white ,w/badge				$ 205.74
6	316503800		Shield,wool				$ 106.89
7	316513000		Insulation,oven Door				$ 81.50
8	316502500		Glass,door ,inner ,(2)			Immediately	$ 115.65
9	316503613		Liner-oven Door				$ 148.84
10	5304507924		Screw,handle Mtg. ,no.10-24 X 2 ,(2)   (Replaces: 316439505)			Immediately	$ 16.48
12	316405000		Seal,oven Door			Immediately	$ 179.17
16	316502601		Glass,door ,airwash   (Replaces: 316502600)			Immediately	$ 207.85
17	5304503172		Spacer,door Glass ,(2)   (Replaces: 316502101)				$ 25.79
18	316547900		Link,door ,(2) ,auto Rack				$ 20.56
20	316533801		Plate,distribution ,load			Immediately	$ 5.67
23	316537304		Hinge,oven Door ,blue ,(2)		Appelez-nous	-
39	316554010		Handle,door/drawer ,stainless   (Replaces: 316554005)			Immediately	$ 168.44
40	316530403		Bracket-airwash Glass Wash				$ 33.18
52	316575500		Cap,door Trim ,white			Immediately	$ 122.09
60B	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316433603		Label,anti-tip				$ 3.55
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316418900		Screw,sims Lp ,no.8-32 X 5/16`` ,black				$ 14.18

    View Diagram in Separate Window       Print Part List
