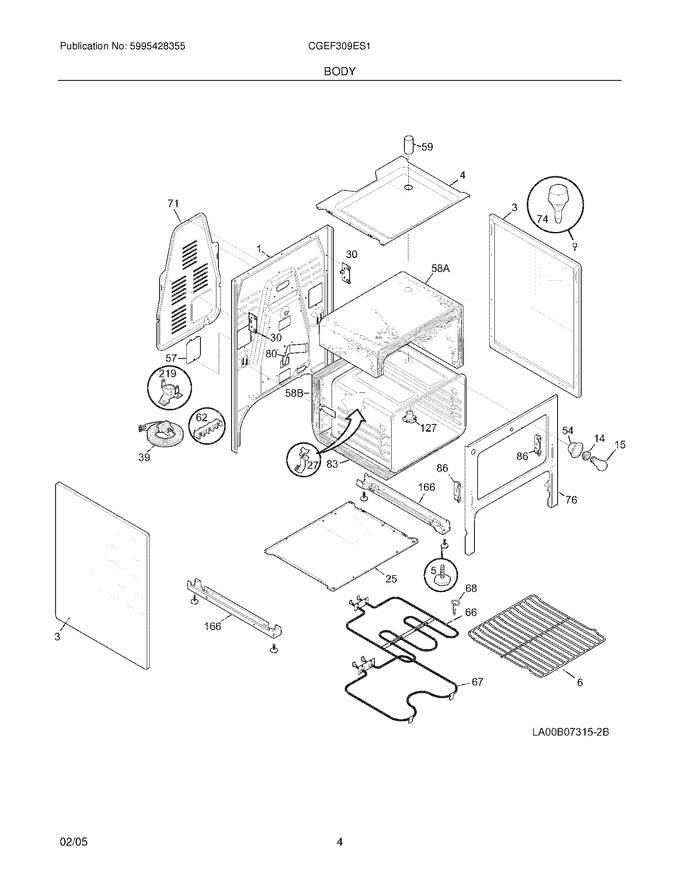

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 318108102 | Panel,main Back |
|
- | |||||
| 3 | 318025611 | Panel,bodyside ,white ,(2) |
|
- | |||||
| 4 | 318073805 | Burner Box,insul Cover |
|
- | |||||
| 5 | 318175510 | Screw-leveling (Replaces: 318175503) |
|
Immediately | $ 24.26 | ||||
| 6 | 318025314 | Rack,oven (Replaces: 318025308) |
|
Immediately | $ 148.70 | ||||
| 14 | 316116400 | Receptacle,oven Light (Replaces: 318224000) |
|
Immediately | $ 56.10 | ||||
| 15 | 40A15 | Lamp-oven Light (Replaces: 5303299720) |
|
Immediately | $ 1.98 | ||||
| 25 | 318108702 | Shield,heat,lower |
|
- | |||||
| 27 | 5303284616 | Clip,thermo Bulb Mtg |
|
$ 9.86 | |||||
| 30 | 318110800 | Bracket-hinge,main Top ,(2) |
|
- | |||||
| 39 | 318113107 | Cord,electric |
|
- | |||||
| 54 | 318222400 | Housing,oven Light |
|
$ 58.22 | |||||
| 57 | 318036501 | Cover,access |
|
- | |||||
| 59 | 318072547 | Tube,vent ,oven |
|
- | |||||
| 62 | 5303935061 | Terminal Block Kit |
|
- | |||||
| 66 | 318255605 | Element,broil ,2750w (Replaces: 318255600) |
|
Immediately | $ 192.78 | ||||
| 68 | 5304403015 | Support,element Hanger |
|
$ 35.04 | |||||
| 71 | 318086601 | Cover,wire |
|
- | |||||
| 74 | 318141910 | Bumper,bodyside |
|
$ 3.68 | |||||
| 76 | 318108501 | Frame-front,wheels Incl |
|
- | |||||
| 80 | 5303324473 | Bracket,oven Mounting |
|
- | |||||
| 83 | 318109413 | Liner,oven |
|
$ 135.14 | |||||
| 86 | 5303310524 | Receptacle,hinge |
|
- | |||||
| 127 | 318230000 | Adapter,vent Tube |
|
- | |||||
| 166 | 318111000 | Bracket,base Support |
|
- | |||||
| 58A | 318285000 | Insulation,oven Wrapper |
|
- | |||||
| 58B | 318285013 | Insulation,oven Back |
|
$ 50.24 | |||||
| F219 | 318003602 | Thermostat,safety |
|
$ 110.09 | |||||
| F67 | 318255006 | Element,bake ,3000w (Replaces: 318255000) |
|
Immediately | $ 185.14 | ||||
| NI | 5303325980 | Screw,10-32 X 0.437 |
|
$ 12.76 | |||||
| NI | 5303323139 | Screw,10-24 X 0.906 |
|
$ 13.46 | |||||
| NI | 316205500 | Nut-10-32 (Replaces: 5303323144) |
|
$ 11.34 | |||||
| NI | 3201861 | Screw,6 X 0.375 ,(4) |
|
$ 0.76 | |||||
| NI | 5303131801 | Screw, 10 X 3/8 |
|
- | |||||
| NI | 134178901 | Screw,8 X 0.500 (Replaces: 5303211311) |
|
$ 14.89 | |||||
| NI | 5303307980 | Screw,8-32 X 0.437 |
|
Immediately | $ 14.18 | ||||
| NI | 5303325978 | Screw,shoulder Head ,8-18 X 1/2 |
|
- |
