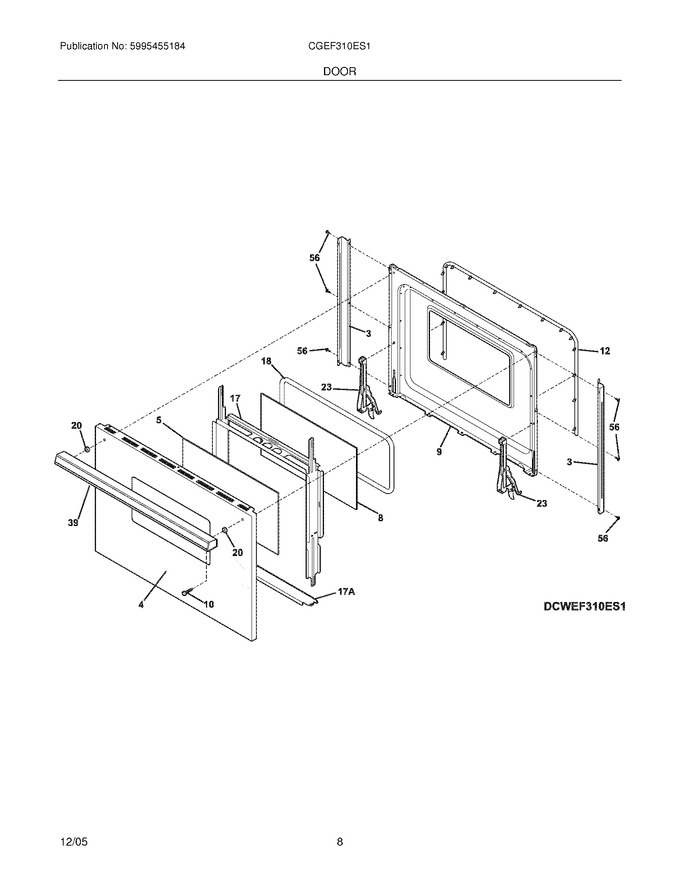

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318301401		Trim,oven Door ,white				$ 27.72
4	318312021		Panel,door ,white		Appelez-nous	-
5	318311800		Glass,door ,inner				$ 101.80
8	316427700		Glass,oven Door ,inner				$ 178.09
9	318259624		Liner,oven Door		Appelez-nous	-
10	5303311135		Screw-handle,8-32 X 3/4 ,(2)		Appelez-nous	-
12	318053325		Seal,door ,lower Oven				$ 64.94
17	318300501		Bracket,glass				$ 42.05
18	318323001		Gasket,inner Door		Appelez-nous	-
20	5303310504		Spacer,handle ,oven Door ,(2)		Appelez-nous	-
23	5303310506		Hinge,oven Door ,upper Oven		Appelez-nous	-
39	5303325322		Handle-door,oven		Appelez-nous	-
56	5304448821		Screw,8-18 X 1/2 ,white ,(6)		Appelez-nous	-
17A	318300600		Bracket,glass ,lower				$ 200.66
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303307980		Screw,8-32 X 0.437 ,(4)			Immediately	$ 14.18
NI	5304415832		Screw,8-18 X 0.406		Appelez-nous	-
