Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3206215 Main Top, Almond Appelez-nous -
2 08067746 Bracket-hinge Lh Appelez-nous -
3 08067747 Bracket-hinge Rh Appelez-nous -
4 5303012700 Grate (4) Appelez-nous -
5 5303271609 Rod - Main Top Sprt Appelez-nous -
6 3204869 Knob-top Valve, (4) Appelez-nous -
7 5303280587 Knob-thermostat Appelez-nous -
8 3204871 Panel-manifold Appelez-nous -
9 3131190 Cover-vent Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

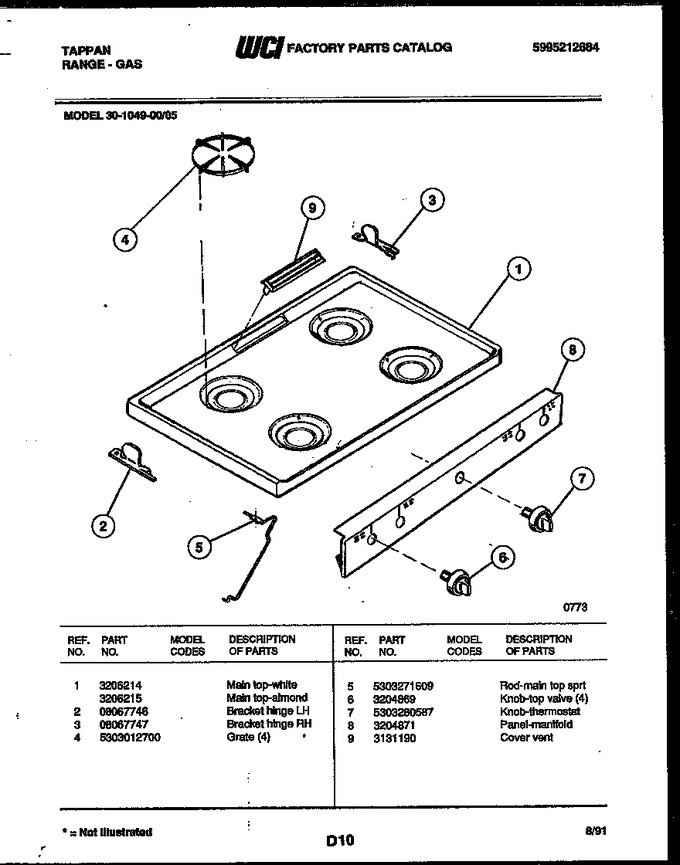

Diagram for 30-1049-23-05
