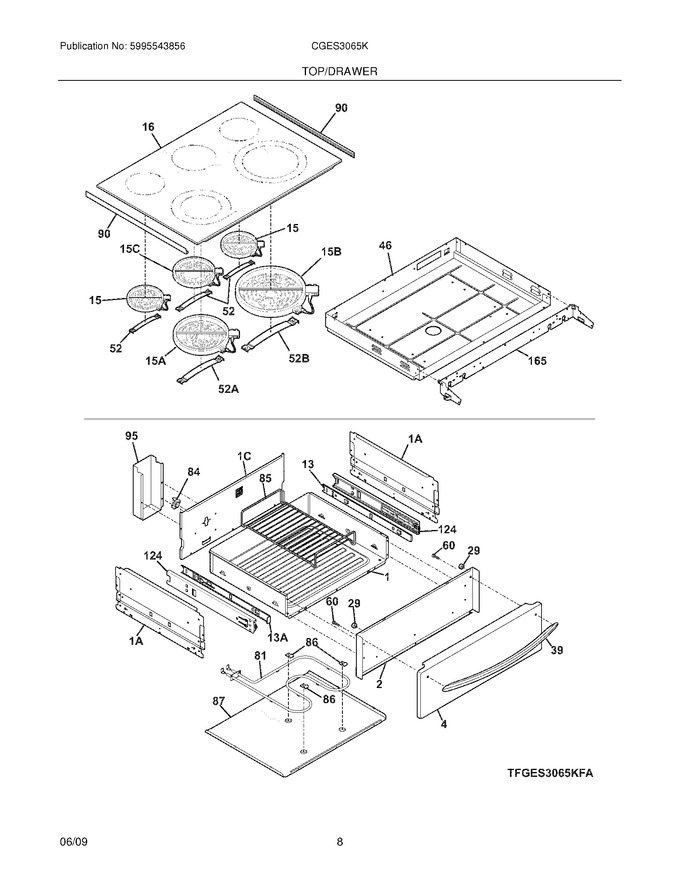

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 318304401 | Drawer,body Assembly |
|
- | |||||
| 2 | 318303901 | Panel,drawer ,black ,inner |
|
- | |||||
| 4 | 318299908 | Panel,drawer ,black ,front |
|
$ 117.81 | |||||
| 13 | 318259507 | Glide,warmer ,inner Rh |
|
Immediately | $ 69.01 | ||||
| 16 | 318916905 | Smooth Top,assembly ,glass/steel ,black |
|
$ 586.74 | |||||
| 29 | 318147430 | Bumper,(2) |
|
$ 18.95 | |||||
| 39 | 318927401 | Handle,door/drawer ,black |
|
$ 189.11 | |||||
| 46 | 318921402 | Box,burner |
|
- | |||||
| 52 | 318122006 | Spring,element Mtg ,small |
|
$ 66.25 | |||||
| 60 | 5303311174 | Screw, 10-24 X 3/8 |
|
Immediately | $ 14.89 | ||||
| 85 | 807328301 | Rack,warmer Drawer (Replaces: 318345601) |
|
$ 87.21 | |||||
| 86 | 316095800 | Clip,hold Down ,warmer Element |
|
$ 9.93 | |||||
| 87 | 318300102 | Panel,warmer Drawer ,lower |
|
$ 106.22 | |||||
| 90 | 318368001 | Channel,glass Protector ,(2) |
|
$ 22.98 | |||||
| 95 | 318303800 | Shield,wire |
|
- | |||||
| 124 | 316105501 | Glide,outer/rh & Lh ,(2) |
|
$ 90.72 | |||||
| 165 | 318913300 | Deflector,box ,front |
|
$ 48.67 | |||||
| 13A | 318259506 | Glide,warmer ,inner Lh |
|
$ 69.01 | |||||
| 1A | 318300003 | Panel,warmer Drawer ,side ,(2) |
|
$ 56.13 | |||||
| 1C | 318300301 | Panel,warmer Drawer ,rear |
|
- | |||||
| 52A | 318122010 | Spring,element Mtg ,3000w |
|
$ 62.51 | |||||
| 52B | 318122011 | Spring,element Mtg ,1200w/1800w |
|
$ 62.14 | |||||
| F15 | 318178110 | Element,surface ,6`` ,1200w ,(2) ,radiant (Replaces: 318198830) |
|
Immediately | $ 122.86 | ||||
| F15A | 5304533520 | Element,surface ,6``/9`` ,1400/3000w ,radiant (Replaces: 316465001) |
|
Immediately | $ 90.14 | ||||
| F15B | 316282100 | Element,surface ,9``/12`` ,1700w/2700w ,radiant (Replaces: 316464901) |
|
Immediately | $ 249.27 | ||||
| F15C | 318198843 | Element,surface ,warm Zone ,100w ,radiant |
|
$ 206.01 | |||||
| F81 | 318255301 | Element,warmer Drawer |
|
$ 105.42 | |||||
| F84 | 318005108 | Thermostat |
|
Immediately | $ 81.14 | ||||
| FNI | 318228954 | Harness,wiring ,cooktop |
|
$ 255.83 | |||||
| NI | 134716700 | Washer,flat ,(2) (Replaces: 3201909) |
|
$ 2.12 | |||||
| NI | 134178901 | Screw,8 X 0.500 (Replaces: 5303211311) |
|
$ 14.89 | |||||
| NI | 5303300265 | Screw,8-18 X 1/2 ,silver ,(4) |
|
$ 15.17 | |||||
| NI | 5303307980 | Screw,8-32 X 0.437 ,(8) |
|
Immediately | $ 14.18 | ||||
| NI | 316519700 | Screw,no.8-18 X 3/8 (Replaces: 5304454881) |
|
$ 10.02 |
