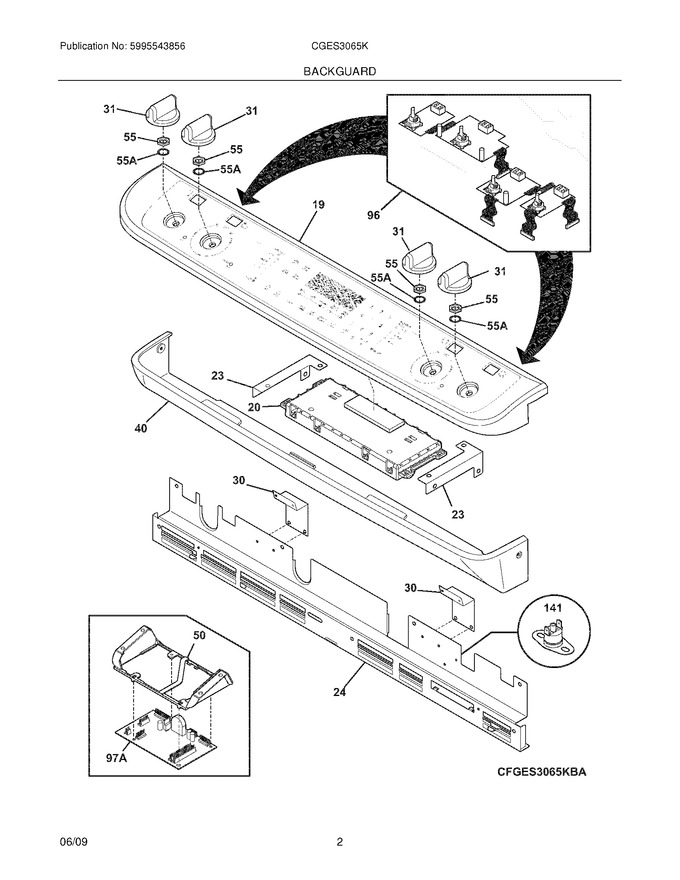

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
23	318921300		Bracket,control Mtg ,(2)				$ 17.64
24	318913101		Trim,vent ,black ,upper				$ 87.89
30	318928502		Bracket,control Panel ,rear ,(2)   (Replaces: 318928500)				$ 15.60
31	316544202		Knob,control ,white				$ 41.12
40	318912904		Panel,service ,white		Appelez-nous	-
50	318917700		Chassis,uib Mounting				$ 91.46
55	316247700		Nut,mounting				$ 18.20
55A	316247800		Washer,lock ,mtg				$ 18.20
F141	318005228		Switch,thermal Cutout				$ 42.11
F19	318922137		Panel Assembly,control ,white ,w/overlay		Appelez-nous	-
F20	316462881		Controller,electronic ,es530			Immediately	$ 364.70
F96	318411400		Control Assembly,complete ,rotary ,w/4 Controls				$ 426.98
F97A	316442061		Board,power ,uib			Immediately	$ 237.28
FNI	318224861		Harness,wiring ,timer				$ 263.87
FNI	318402315		Harness,wiring ,interface		Appelez-nous	-
NI	5304453707		Screw,8-18 X 1/2			Immediately	$ 15.92
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	5304436875		Screw,8-18 X 1/2,black				$ 14.41
NI	316519700		Screw,no.8-18 X 3/8   (Replaces: 5304454881)				$ 10.02
