Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10119337 Strike, Door Special Order $ 23.34

2 99002648 Bracket, Cabinet Mounting Appelez-nous -
3 99002640 Fastener Special Order $ 18.96

4 99002610 Bracket, Spring Adjustment Appelez-nous -
5 99002636 Bracket, Support (left) Appelez-nous -
6 99003688 Nut Special Order $ 5.51

7 99003686 Bracket, Cable Appelez-nous -
8 99002608 Roller, Cable Bracket Special Order $ 9.46

9 99003687 Bolt, Shoulder Special Order $ 5.33

10 99002598 Spring, Door Special Order $ 5.83

11 WP99003446 Door Cable Assy.   (Replaces: 99003446) In-Stock Immediately $ 7.90

12 WPW10223013 Insulation, Tub   (Replaces: 99002849) Special Order $ 83.60

13 WP99003337 Seal, Door   (Replaces: 99003337) In-Stock Immediately $ 138.53

14 W10142298 Tub Assembly Appelez-nous -
15 99002633 Thermostat, Limiting Special Order $ 33.69

16 99001008 Clip, Thermostat Appelez-nous -
17 99002692 Screw, Trim Mounting Special Order $ 5.02

18 99002637 Bracket, Junction Box Appelez-nous -
19 WPW10143258 Leg, Leveling   (Replaces: 99002635) Special Order $ 13.81

20 99003036 Strip, Trim (top) Appelez-nous -
21 99002638 Cover, Junction Box Appelez-nous -
22 W10117484 Support, Hinge (right) Special Order $ 103.72

22 W10117485 Support, Hinge (left) Special Order $ 99.12

23 99002601 Screw Appelez-nous -
24 99002150 Seal, Air/water Inlet Special Order $ 8.72

25 99003029 Grill, Air/water Inlet Appelez-nous -
26 99003035 Strip, Trim (rt) Special Order $ 38.90

27 99003034 Strip, Trim (lft) Appelez-nous -
28 99002762 Backer, Hinge Seal (right) Appelez-nous -
28 99002761 Backer, Hinge Seal (left) Appelez-nous -
29 99003038 Trim, Corner Edge (left) Special Order $ 5.84

29 99003039 Trim, Corner Edge (right) Special Order $ 5.84

30 WP99003041 Trim, Tub Edge (bottom)   (Replaces: 99003041) In-Stock Immediately $ 89.01

31 99003087 Bracket, Support (rear) Appelez-nous -
32 99002703 Gap Seal, Toe Kick (white) Special Order $ 24.09

32 99002701 Gap Seal, Toe Kick (black) Special Order $ 34.28


    View Diagram in Separate Window     Print Icon   Print Part List

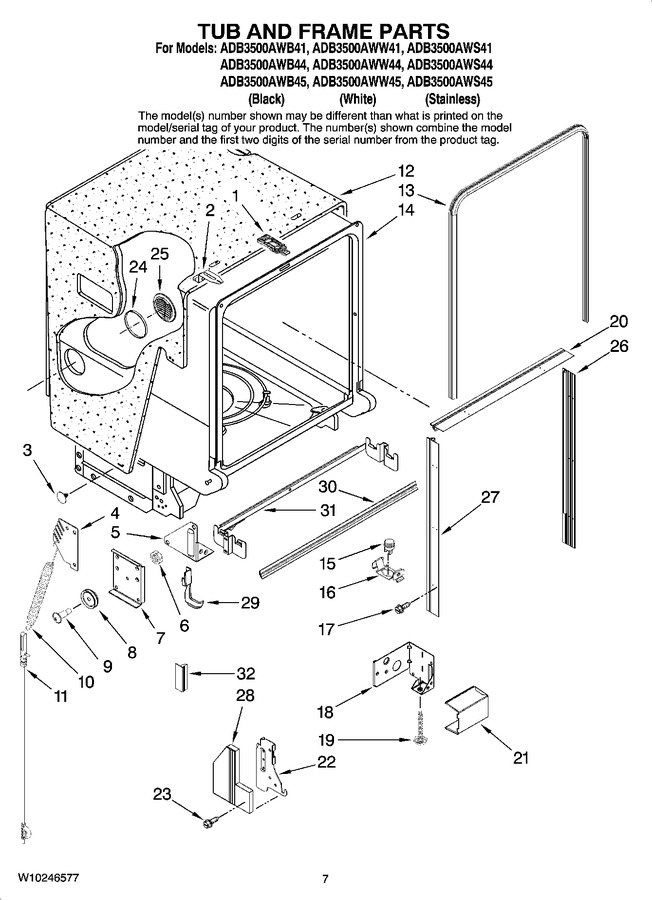

Diagram for ADB3500AWB44
