Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10120534 Dishrack, Upper Appelez-nous -
2 99003066 Rail, Inner Slide Appelez-nous -
3 99002669 Clip, Upper Wash Manifold (front) Special Order $ 5.84

4 99002945 Clip, Upper Wash Manifold (back) Special Order $ 21.24

5 99002679 Wash Manifold Assy, (upper) Appelez-nous -
6 99002624 Arm, Wash (upper) Special Order $ 32.72

7 W10120547 Dishrack, Lower Appelez-nous -
8 WP99002780 Wheel Assembly Lower   (Replaces: 99002780) In-Stock Immediately $ 9.90

9 99003147 Wheel Assembly (upper) Special Order $ 9.42

10 99003429 Basket, Silverware Appelez-nous -
11 99003281 Stop, Rail Special Order $ 5.84

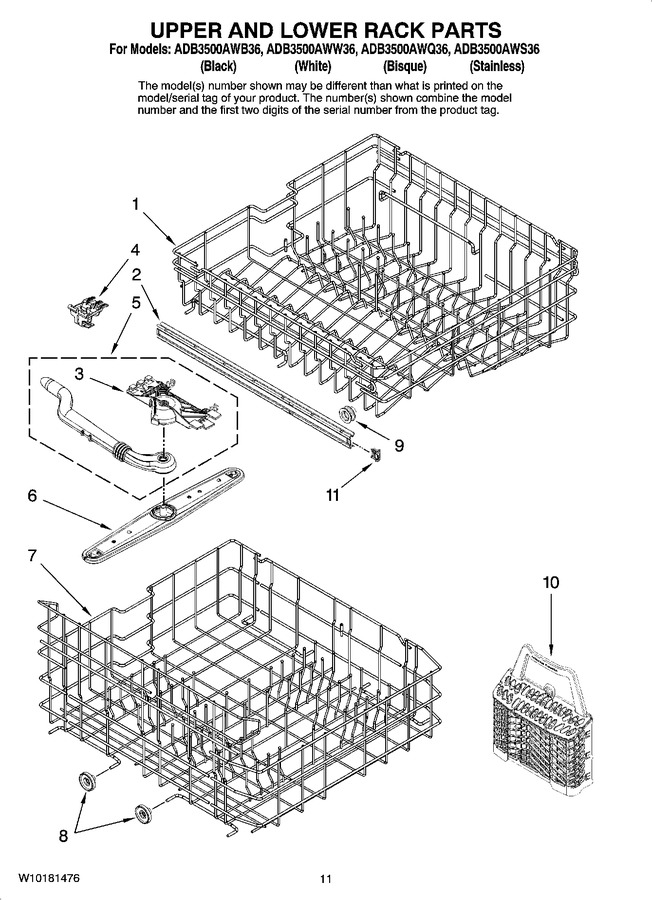

    View Diagram in Separate Window     Print Icon   Print Part List
