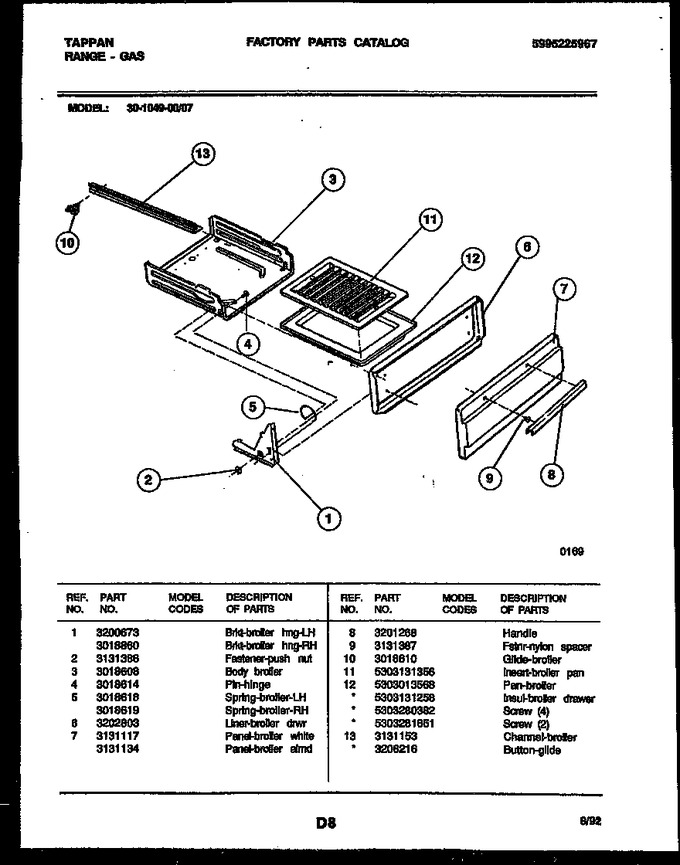

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3200673 | Brkt-broiler Hng (lh) |
|
- | |||||
| 2 | 3131386 | Fastener, Push Nut |
|
- | |||||
| 3 | 3018608 | Body, Broiler |
|
- | |||||
| 4 | 3018614 | Pin-hinge |
|
- | |||||
| 5 | 3018618 | Spring-broiler, Lh |
|
- | |||||
| 6 | 3202803 | Liner - Broiler Drwr |
|
- | |||||
| 7 | 3131134 | Panel - Broiler Almd |
|
- | |||||
| 8 | 3201268 | Handle |
|
- | |||||
| 9 | 3131387 | Fstnr - Nylon Spacer |
|
- | |||||
| 10 | 3018610 | Glide-broiler |
|
$ 29.40 | |||||
| 11 | 5303131356 | Insert-broiler Pan |
|
- | |||||
| 12 | 5303013568 | Pan-broiler |
|
- | |||||
| 13 | 3131153 | Channel-broiler |
|
- | |||||
| *75090 | 3206216 | Button Glide |
|
- | |||||
| 12A | 5303131258 | Insul - Broiler Drawer (non-illustrated) |
|
- | |||||
| 12B | 5303280382 | Screw (4) (non-illustrated) |
|
- | |||||
| 12B | 5303281651 | Screw (2) (non-illustrated) |
|
- | |||||
| 1A | 3018860 | Brkt-broiler Hng (rh) |
|
- | |||||
| 5A | 3018619 | Spring-broiler, Rh |
|
- |
