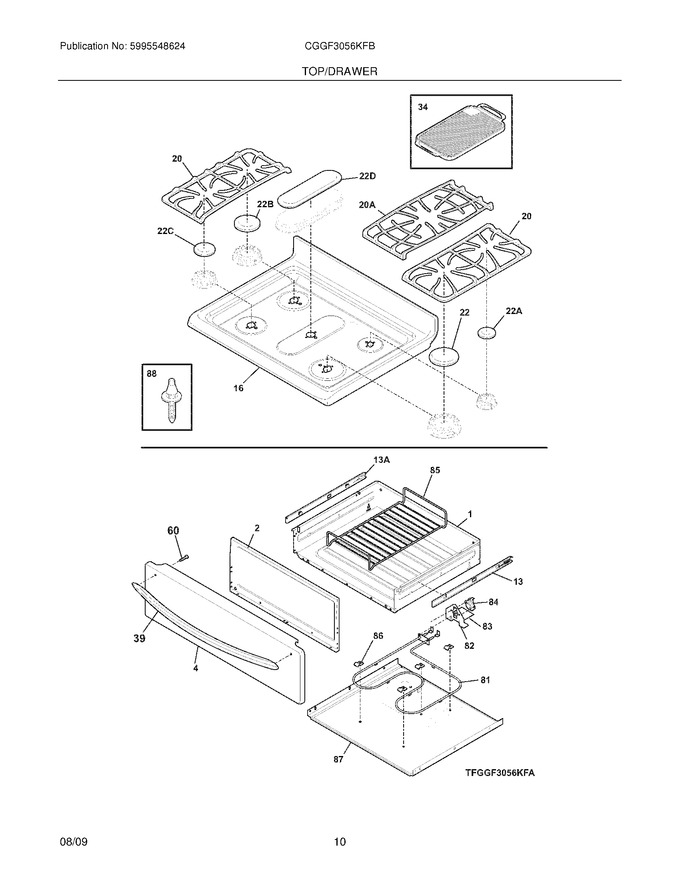

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408905		Drawer,warmer   (Replaces: 316408901)				$ 143.45
2	5304527988		Liner,black ,drawer   (Replaces: 316403203)			Immediately	$ 26.54
4	5304494412		Panel,drawer ,stainless ,outer   (Replaces: 316409312)				$ 98.53
13	316415000		Glide,warmer ,inner Rh				$ 58.82
16	316469653		Maintop Panel,black				$ 510.98
20	316499806		Grate,black ,(2)   (Replaces: 316499502)				$ 354.16
22	5304508468		Cap,16/17k-burner ,black   (Replaces: 316438504)				$ 49.45
34	316499900		Griddle				$ 114.83
39	316554010		Handle,door/drawer ,stainless   (Replaces: 316554005)			Immediately	$ 168.44
60	5303288572		Screw-handle Mtg		Appelez-nous	-
82	316093200		Bracket,element Mtg		Appelez-nous	-
83	316093300		Shield,terminal ,warmer Drawer		Appelez-nous	-
84	316093502		Thermo Disc,warmer Drawer				$ 51.03
85	807328301		Rack,warmer Drawer   (Replaces: 316425900)				$ 87.21
86	316095800		Clip,hold Down ,warmer Element				$ 9.93
87	316091900		Base,warmer Drawer				$ 221.55
88	316099500		Pin,guide ,(2)				$ 6.53
13A	316415001		Glide,warmer ,inner Lh			Immediately	$ 58.82
20A	316499806		Grate,center ,black   (Replaces: 316551802)				$ 354.16
22A	5304508441		Cap,5k Burner ,black   (Replaces: 316438304)			Immediately	$ 35.04
22B	316438704		Cap,14k Burner ,black				$ 69.03
22C	316527704		Cap,9.5k Burner ,black ,medium ,(2)				$ 52.24
22D	316532103		Cap,9.5k Burner ,oval ,black ,center				$ 124.85
F81	316437300		Element,warmer Drawer				$ 106.17
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	5304516184		Harness,warm Base   (Replaces: 316525623)				$ 28.51
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
