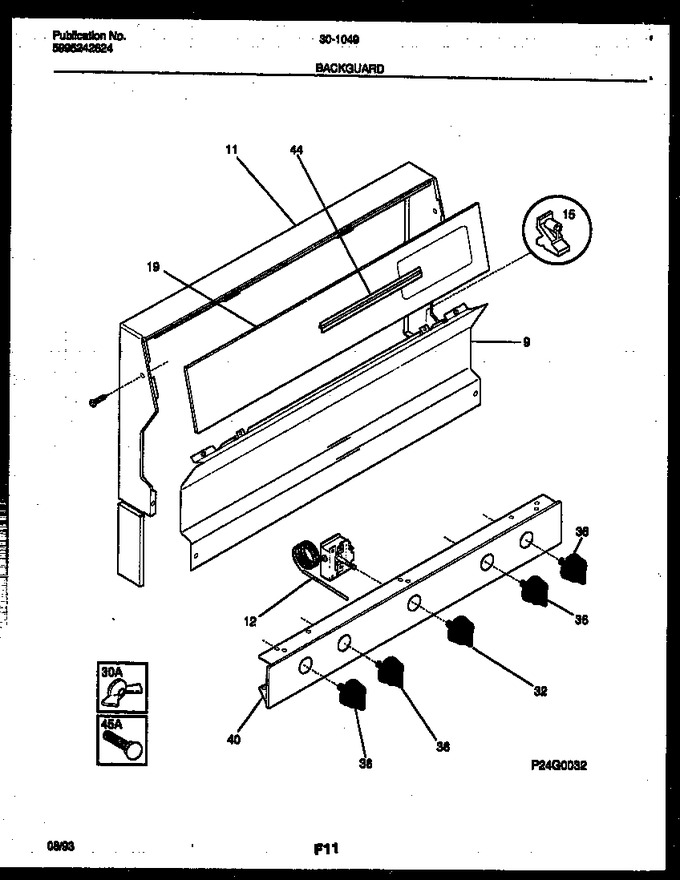

02 - Backguard
03 - Burner Parts
04 - Body Parts
05 - Cooktop And Broiler Drawer Parts
06 - Door Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 9 | 316043602 | Trim-splasher, Almond |
|
- | |||||
| 11 | 316057002 | Trim-wrapper |
|
- | |||||
| 12 | 5303935014 | Thermostat,oven ,w/screws |
|
- | |||||
| 15 | 5303131237 | Support-backguard,(2) |
|
- | |||||
| 19 | 316034106 | Panel-control, Metal |
|
- | |||||
| 32 | 5303297131 | Knob-thermostat |
|
- | |||||
| 36 | 3204869 | Knob-top Valve, (4) |
|
- | |||||
| 40 | 3204871 | Panel-manifold |
|
- | |||||
| 44 | 3131468 | Bracket, Backguard |
|
- | |||||
| 30A | 316056800 | Nut-wing, Nylon |
|
- | |||||
| 45A | 316056900 | Bolt-fastener, Nylon |
|
- |
