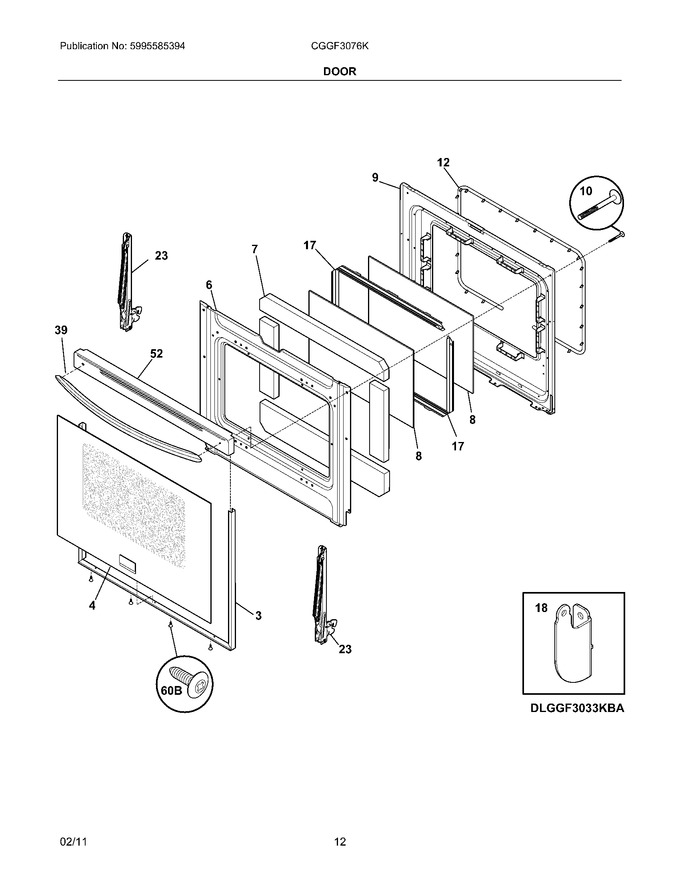

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303935324		Trim Kit-door,3 Sided ,black ,w/tape				$ 80.80
4	5304478952		Glass Assembly,outer ,white ,w/badge				$ 213.41
6	316402316		Shield,wool   (Replaces: 316402310)			Immediately	$ 88.72
7	316403900		Insulation,oven Door			Immediately	$ 72.30
8	5304503232		Glass,oven Door ,heat Barrier   (Replaces: 316117500)				$ 116.95
9	316423811		Liner,oven Door				$ 141.54
10	5304507924		Screw,handle Mtg. ,no.10-24 X 2 ,(2)   (Replaces: 316439505)			Immediately	$ 16.48
12	5304498835		Seal,oven Door   (Replaces: 316403101)			Immediately	$ 88.74
17	5304504811		Spacer,door Glass ,(2)   (Replaces: 316402403)			Immediately	$ 25.02
18	316547900		Link,door ,(2) ,auto Rack				$ 20.56
23	316575902		Hinge,oven Door				$ 102.38
39	316554010		Handle,door/drawer ,stainless   (Replaces: 316554005)			Immediately	$ 168.44
52	316575501		Cap,door Trim ,black				$ 110.73
60B	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316418900		Screw,sims Lp ,no.8-32 X 5/16`` ,black				$ 14.18
NI	316433603		Label,anti-tip				$ 3.55
