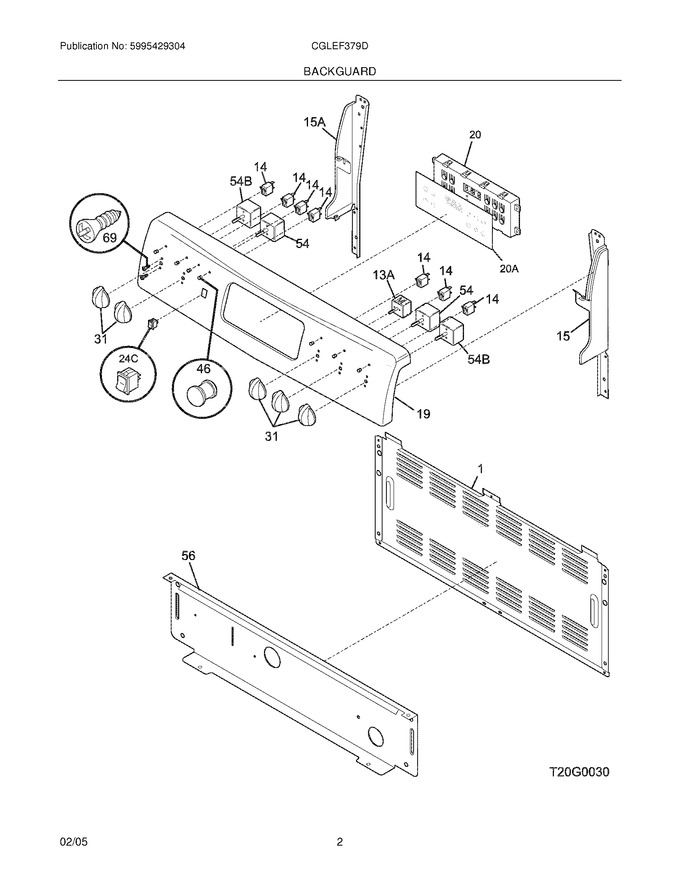

03 - Backguard
05 - Body
07 - Top/drawer
09 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316281802 | Shield,backguard ,rear Wall (Replaces: 316416100) |
|
$ 57.64 | |||||
| 14 | 316022500 | Light/lamp, Indicator, 125 V |
|
Immediately | $ 53.57 | ||||
| 15 | 316411403 | Support,backguard ,white ,rh |
|
$ 84.10 | |||||
| 19 | 316424141 | Panel,control ,white |
|
- | |||||
| 31 | 316223000 | Knob,control ,white |
|
Immediately | $ 72.80 | ||||
| 46 | 316040201 | Lens,indicator Light ,red |
|
- | |||||
| 56 | 316234029 | Shield,backguard ,white ,inner (Replaces: 316234012) |
|
$ 87.17 | |||||
| 69 | 5303288565 | Screw,truss Sqdr `8-32 X 3/16 ,switch Mtg |
|
$ 3.12 | |||||
| 13A | 5304508926 | Switch,infinite ,warmer (Replaces: 316095500) |
|
Immediately | $ 84.18 | ||||
| 15A | 316411402 | Support,backguard ,white ,lh |
|
$ 94.55 | |||||
| 20A | 316419304 | Overlay,clock ,white ,es340 |
|
$ 46.07 | |||||
| F20 | 316418305 | Clock/timer,electronic ,es340 |
|
- | |||||
| F24C | 316259800 | Switch-speed Bake,white (Replaces: 316114000) |
|
$ 36.21 | |||||
| F54 | 5303935086 | Switch,infinite ,small Element (Replaces: 316021500) |
|
Immediately | $ 51.95 | ||||
| F54B | 316238201 | Switch,infinite ,dual Element (Replaces: 316238200) |
|
Immediately | $ 89.00 | ||||
| NI | 316021109 | Screw,hex Head Cup Pt ,8-18 X 0.375 ,black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw`8-18 X 0.5 ,chrome |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw,8-18 X 0.5 ,black (Replaces: 316021110) |
|
Immediately | $ 27.50 |
