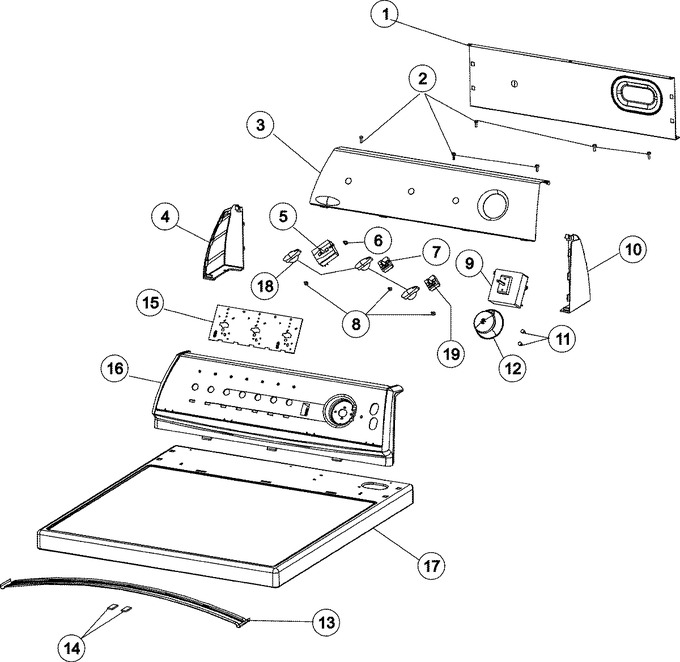

03 - Control Panel & Top (9005agw)
04 - Supplemental Information
05 - Tumbler
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 37001233 | Shield, Backguard | 10 |
|
- | ||||
| 2 | WP3400888 | Screw (Replaces: 21002224) | 10 |
|
$ 6.26 | ||||
| 3 | 37001226 | Facia | 10 |
|
- | ||||
| 4 | 21001636 | Endcap, Panel (rt-wht) | 10 |
|
- | ||||
| 5 | 37001165 | Switch, Temp - 4 Position | 10 |
|
$ 62.06 | ||||
| 6 | WP90767 | Screw, 8b-18x3/8 Slt (Replaces: 501086) | 10 |
|
Immediately | $ 7.04 | |||
| 7 | 31001448 | Buzzer, Cycle Signal | 10 |
|
- | ||||
| 8 | 31260 | Screw, No.8 X 3/8 Ind H | 10 |
|
$ 2.68 | ||||
| 9 | 37001258 | Timer, Dryer - Export | 10 |
|
- | ||||
| 10 | 21001629 | Endcap, Panel (lt-wht) | 10 |
|
- | ||||
| 11 | WP489128 | Screw, No.8-32x3/8`` Hex (Replaces: 37001031) | 10 |
|
$ 9.79 | ||||
| 12 | 31001388 | Knob/skirt, Timer (wht) | 10 |
|
$ 25.71 | ||||
| 13 | 21001965 | Frame, Control Panel, Support | 10 |
|
- | ||||
| 14 | WP500121 | Pad, Felt-coin (Replaces: 500121) | 10 |
|
Immediately | $ 7.75 | |||
| 15 | 21001603 | Shield, Control (3 Pos.) | 10 |
|
- | ||||
| 16 | 21001635 | Frame (wht) | 10 |
|
- | ||||
| 17 | 37001232 | Cover, Top - White/dryer | 10 |
|
- | ||||
| 18 | 21001544 | Knob, Selector (wht) | 10 |
|
- | ||||
| 19 | 31001443 | Switch, Two Pos (on/off)rotary | 10 |
|
- |
