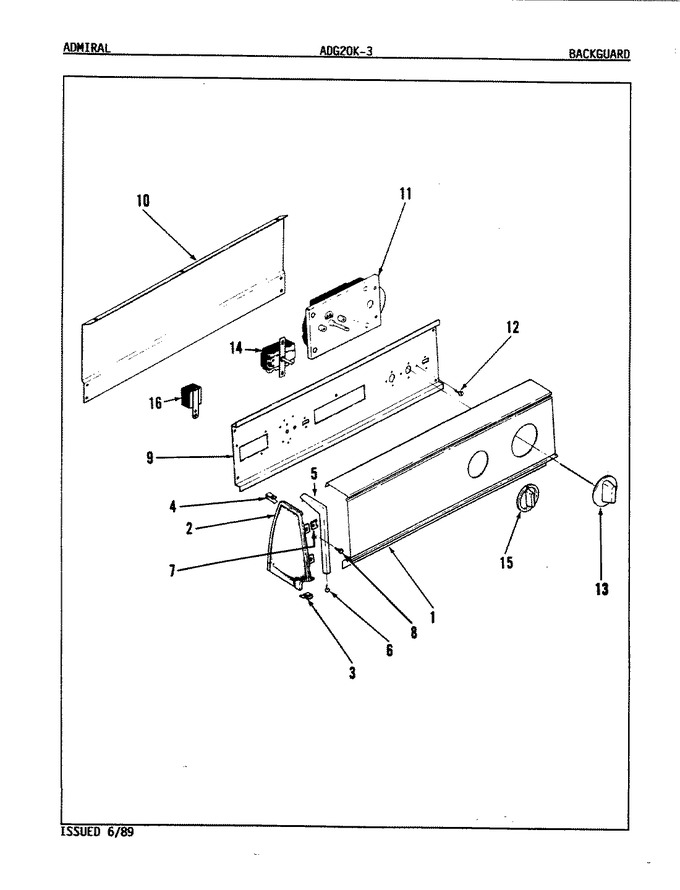

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	53-1281		Control Panel		Appelez-nous	-
2	53-0265		Lh Endcap		Appelez-nous	-
2	35-2488		Cap, End (lt)	C	Appelez-nous	-
2	25-7649		Screw		Appelez-nous	-
2	25-7702		Speedclip, End Cap To Ctrl Pnl		Appelez-nous	-
2	35-2487		Cap, End (rt)	C	Appelez-nous	-
2	53-0264		Rh Endcap		Appelez-nous	-
3	25-7697		Screw		Appelez-nous	-
3	25-7851		Speedclip, End Cap To Top		Appelez-nous	-
4	25-7852		Speedclip, Rr Shld To End Cap		Appelez-nous	-
4	WP33002917		Screw   (Replaces: 25-7435)			Immediately	$ 6.90
5	53-0278		Trim, End Cap (lt)		Appelez-nous	-
5	53-0277		Trim, End Cap (rt)		Appelez-nous	-
6	25-7760		Screw		Appelez-nous	-
7	25-7702		Speedclip, End Cap To Ctrl Pnl		Appelez-nous	-
8	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
9	53-1676		Shield, Control	C	Appelez-nous	-
9	53-0365		Control Shield		Appelez-nous	-
10	53-0268		Rear Shield		Appelez-nous	-
10	35-2688		Shield, Control Panel (rear)	C	Appelez-nous	-
11	53-1303CP		Timer   (Replaces: 53-1303)		Appelez-nous	-
11	63-6752		Timer Motor		Appelez-nous	-
12	25-0205		Screw		Appelez-nous	-
13	53-1356		Knob Assy-timer		Appelez-nous	-
14	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
14	53-0344		Switch, Temperature		Appelez-nous	-
15	35-2185		Knob, Selector (blk)		Appelez-nous	-
16	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
16	63-6731		Buzzer		Appelez-nous	-
