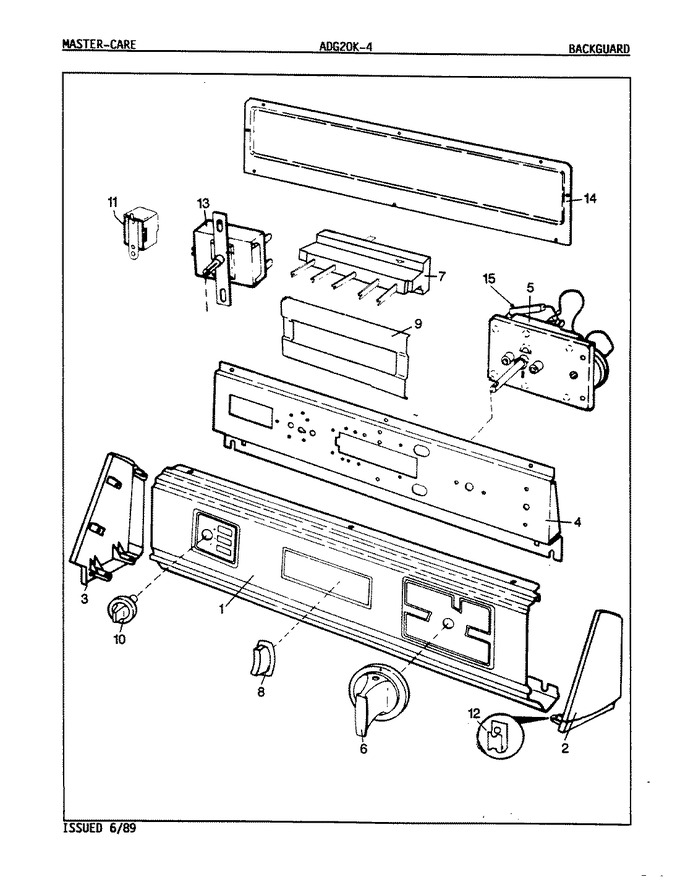

01 - Control Panel (rev. A-b)


02 - Cylinder & Drive (rev. A-b)


03 - Gas Carrying (rev. A-b)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	53-1280		Control Panel		Appelez-nous	-
1	25-7702		Speedclip, End Cap To Ctrl Pnl		Appelez-nous	-
1	25-7793		Screw		Appelez-nous	-
2	53-0265		Lh Endcap		Appelez-nous	-
3	25-7760		Screw		Appelez-nous	-
3	53-0264		Rh Endcap		Appelez-nous	-
3	53-0277		Trim, End Cap (rt)		Appelez-nous	-
3	53-0278		Trim, End Cap (lt)		Appelez-nous	-
4	25-7702		Speedclip, End Cap To Ctrl Pnl		Appelez-nous	-
4	53-0323		Control Shield		Appelez-nous	-
4	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
5	53-1300		Timer		Appelez-nous	-
5	WP489483		Screw   (Replaces: 25-0088)				$ 9.78
5	63-5685		Timer Motor		Appelez-nous	-
6	53-1533		Knob & Skirt Assy.		Appelez-nous	-
6	25-6044		Set Screw		Appelez-nous	-
7	53-1296		Switch		Appelez-nous	-
8	35-0385		Pushbutton		Appelez-nous	-
9	33-6621		Bracket, Switch		Appelez-nous	-
9	25-7712		Screw		Appelez-nous	-
10	35-2185		Knob, Selector (blk)		Appelez-nous	-
11	63-6731		Buzzer		Appelez-nous	-
11	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
12	25-7702		Speedclip, End Cap To Ctrl Pnl		Appelez-nous	-
13	53-1263		Rotary Switch		Appelez-nous	-
13	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
14	WP33002917		Screw   (Replaces: 25-7435)			Immediately	$ 6.90
14	WP12990527		Screw, Sems   (Replaces: 25-3457)			Immediately	$ 7.15
14	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
14	53-0268		Rear Shield		Appelez-nous	-
14	25-7852		Speedclip, Rr Shld To End Cap		Appelez-nous	-
14	34-9487		Plate, Reinforcement		Appelez-nous	-
14	25-7851		Speedclip, End Cap To Top		Appelez-nous	-
14	25-7697		Screw		Appelez-nous	-
15	33-8541		Switch Pad		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
