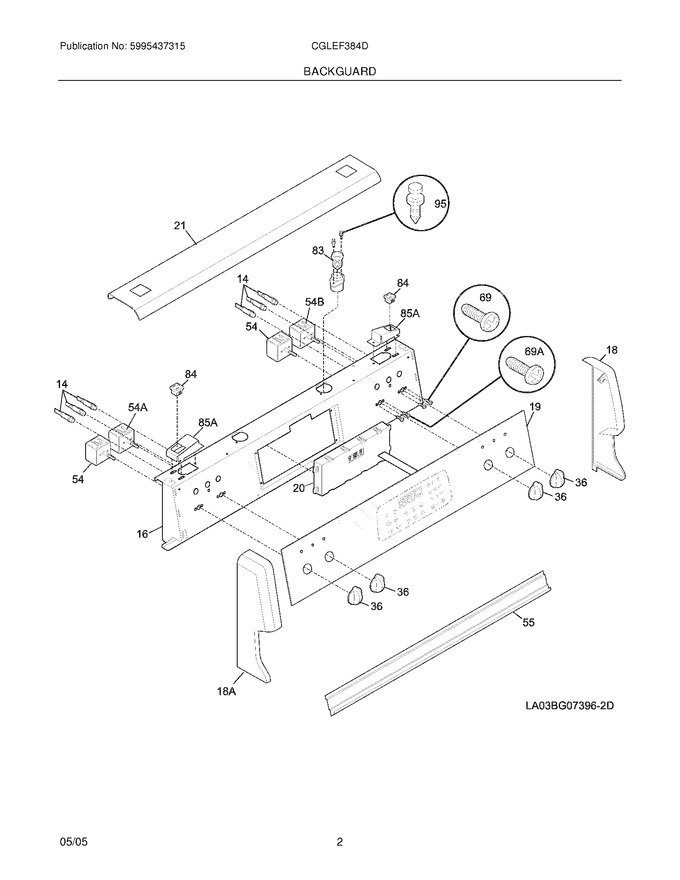

03 - Backguard


05 - Body


07 - Top/drawer


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318117570		Plate,instrument Mtg		Appelez-nous	-
18	318118800		End Cap,white ,rh		Appelez-nous	-
19	318217404		Panel,glass ,white ,with Membrane				$ 319.99
21	318190015		Trim,canopy ,white		Appelez-nous	-
36	318197620		Knob,control ,white		Appelez-nous	-
55	318118720		Trim,backsplash ,white ,bottom				$ 33.05
69	5304401837		Screw,8-32 X 5/16		Appelez-nous	-
95	5303324521		Clip,fuse Holder Mtg		Appelez-nous	-
18A	318118801		End Cap,white ,lh		Appelez-nous	-
69A	5303288565		Screw,8-32 X 0.188   (Replaces: 5303323134)				$ 3.12
85A	318171712		Support,outlet/switch				$ 3.30
F14	318044824		Light,indicator ,250v ,(2)		Appelez-nous	-
F20	318193201		Controller,electronic			Immediately	$ 472.69
F54	318293813		Switch,surface Unit ,small   (Replaces: 318220063)			Immediately	$ 82.66
F54A	318293814		Switch,surface Unit ,large   (Replaces: 318220064)			Immediately	$ 93.29
F54B	903097-9040		Switch,infinite ,dual   (Replaces: 318191001)			Immediately	$ 90.83
F83	318115601		Fuse,15 Amp ,w/fuse Holder				$ 33.86
F84	318146820		Outlet,electrical ,white-glossy ,combined		Appelez-nous	-
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303323137		Screw,8-32 X 1/4   (Replaces: 5303305528)				$ 11.88
