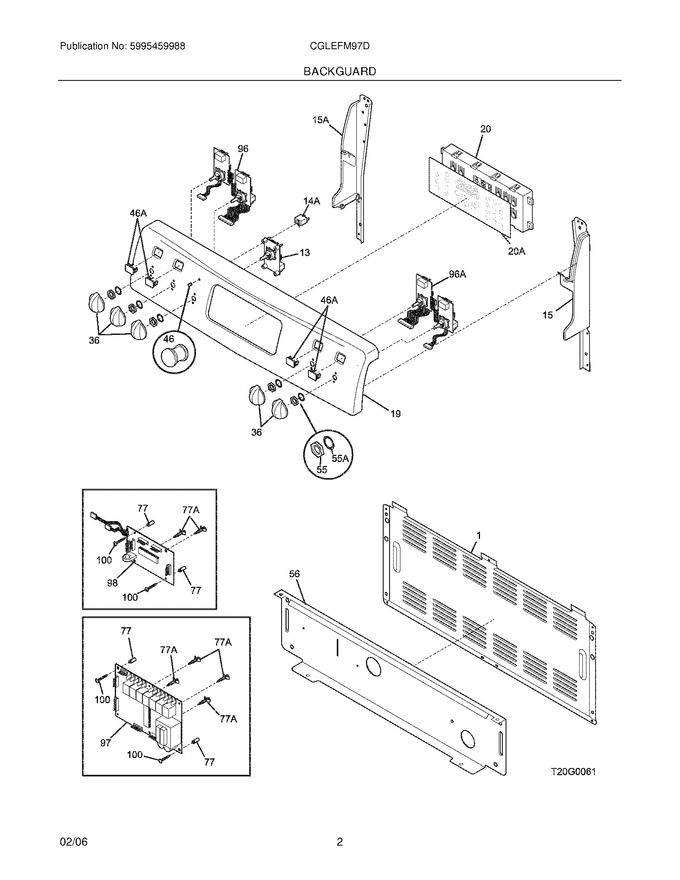

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316281802		Shield,backguard ,rear Wall   (Replaces: 316416100)				$ 57.64
13	316414400		Control,bake ,mini Oven				$ 282.50
15	316411405		Support,backguard ,black ,rh				$ 83.95
19	316424150		Panel,control ,black				$ 233.41
36	316223019		Knob,control ,black				$ 45.65
46	316040201		Lens,indicator Light ,red		Appelez-nous	-
55	316247700		Nut,hex Control Mtg				$ 18.20
56	316234045		Shield,backguard ,black ,inner   (Replaces: 316234013)				$ 66.74
77	316247900		Spacer,power Board ,(2)				$ 44.65
96	316445610		Board,display ,lh Controls ,2 ,potentiometers		Appelez-nous	-
97	316442101		Board,power ,relay				$ 323.77
98	316442001		Board,rotary ,uib				$ 230.74
100	5303289910		Screw,8a ,1`` ,power Board Mtg				$ 5.67
14A	316022500		Light/lamp, Indicator, 125 V			Immediately	$ 53.57
15A	316411404		Support,backguard ,black ,lh				$ 83.95
20A	316419700		Overlay,clock ,black ,w/mini Oven ,es510				$ 51.60
46A	316448000		Lens,led Display				$ 29.51
55A	316247800		Washer-lock,control Mtg				$ 18.20
77A	316114100		Spacer,(2)				$ 60.96
96A	316445611		Board,display ,rh Controls ,2 ,potentiometers		Appelez-nous	-
F20	316418704		Clock/timer,electronic ,w/mini Oven ,es510				$ 373.22
NI	316416916		Harness,main Control				$ 167.79
NI	316416917		Harness,mini Oven Cntl		Appelez-nous	-
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50

    View Diagram in Separate Window       Print Part List
