SELECT A DIAGRAM

01 - Cabinet


02 - Control Panel


03 - Door


04 - Gas Carrying


05 - Motor & Drive


06 - Tumbler


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

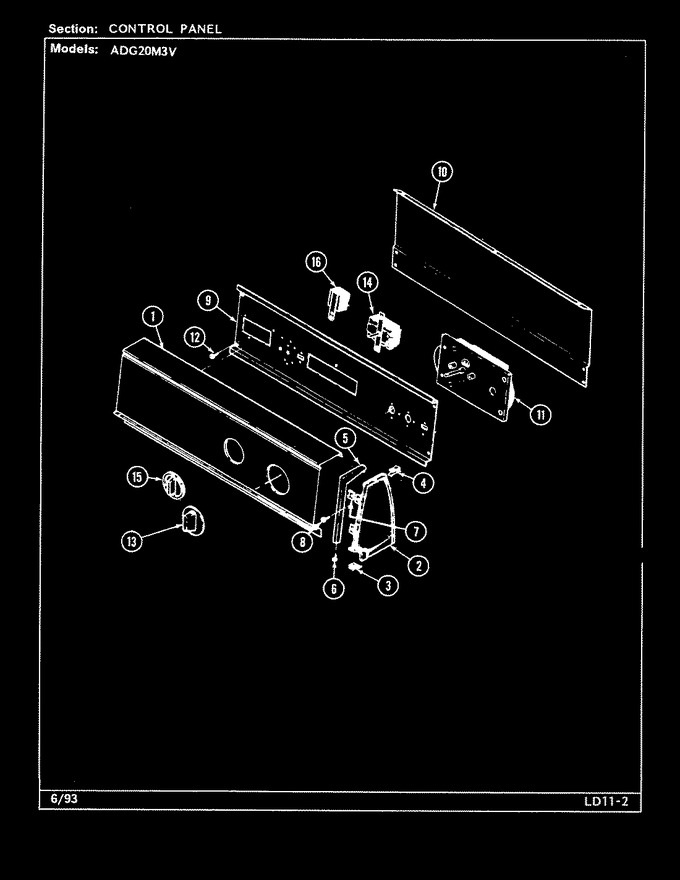

1	53-2361		Control Panel		Appelez-nous	-
2	25-7649		Screw		Appelez-nous	-
2	35-2669		Cap, End (lt)(wht)		Appelez-nous	-
2	25-7851		Speedclip, End Cap To Top		Appelez-nous	-
2	25-7702		Speedclip, End Cap To Ctrl Pnl		Appelez-nous	-
2	25-7696		Screw, Backguard To Top		Appelez-nous	-
2	35-2668		Cap, End (rt)(wht)		Appelez-nous	-
3	25-7691		Screw, End Cap To Top		Appelez-nous	-
3	25-7851		Speedclip, End Cap To Top		Appelez-nous	-
4	25-7852		Speedclip, Rr Shld To End Cap		Appelez-nous	-
4	WP33002917		Screw   (Replaces: 25-7435)			Immediately	$ 6.90
5	53-0277		Trim, End Cap (rt)		Appelez-nous	-
5	53-0278		Trim, End Cap (lt)		Appelez-nous	-
6	25-7760		Screw		Appelez-nous	-
7	25-7702		Speedclip, End Cap To Ctrl Pnl		Appelez-nous	-
8	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
9	53-1676		Shield, Control		Appelez-nous	-
10	35-2688		Shield, Control Panel (rear)		Appelez-nous	-
11	53-1758		Timer		Appelez-nous	-
12	25-0205		Screw		Appelez-nous	-
13	53-2129		Knob, & Skirt Assy		Appelez-nous	-
14	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
14	53-0344		Switch, Temperature		Appelez-nous	-
15	35-2673		Knob, Selector (wht)		Appelez-nous	-
16	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
16	53-2385		Manual, Use & Care		Appelez-nous	-
16	63-5577		Manual, Use & Care		Appelez-nous	-
16	63-6731		Buzzer		Appelez-nous	-
16	16000328		Quick Ref. Guide Mastercare		Appelez-nous	-
