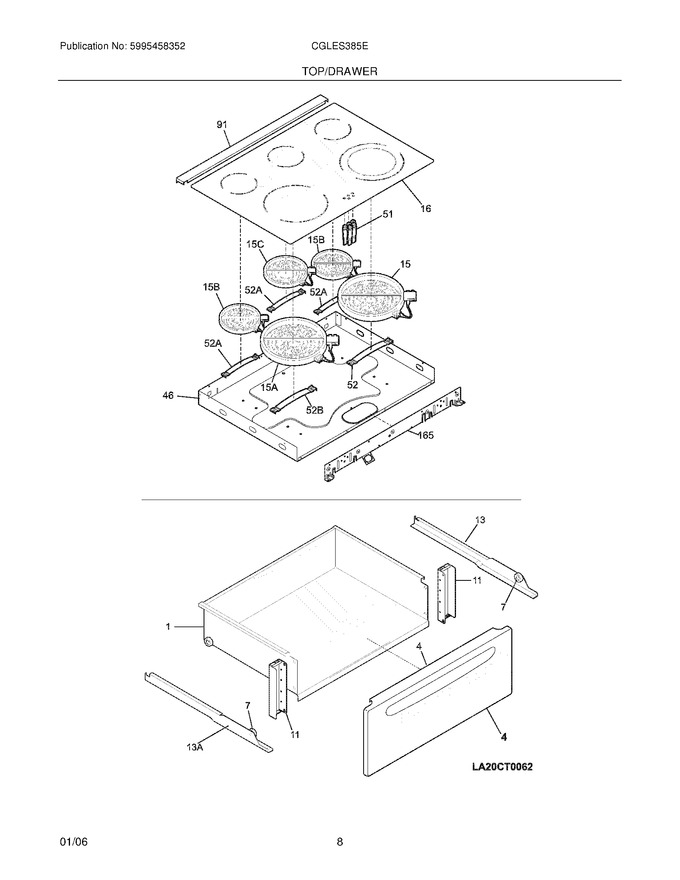

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304505701		Drawer   (Replaces: 318107105)			Immediately	$ 143.39
4	318298901		Panel,drawer ,white ,front		Appelez-nous	-
7	318332200		Roller,nylon ,(2)		Appelez-nous	-
11	318298601		Bracket,drawer Support ,(2)		Appelez-nous	-
13	318018100		Channel-drawer,rh			Immediately	$ 30.01
16	318223643		Main Top,glass Assy. ,black/white		Appelez-nous	-
46	318225410		Box,burner		Appelez-nous	-
52	318122011		Spring,element ,1700w/2700w				$ 62.14
165	318227503		Plate,mounting				$ 247.59
13A	318018101		Channel-drawer,lh				$ 63.11
52A	318122006		Spring,element Mtg ,small				$ 66.25
52B	318122010		Spring,element Mtg ,1000w/2500w				$ 62.51
F15	318198926		Element,surface ,6/9 ,1700/2700w ,dual Radiant				$ 157.28
F15A	318198823		Element,surface ,9`` ,large ,2700 W				$ 235.73
F15B	318198817		Element,surface ,6`` ,1200 W ,(2)			Immediately	$ 192.78
F15C	318198825		Element,surface ,warmer ,100 W				$ 191.21
F51	318044827		Light,indicator ,clear   (Replaces: 318044822)			Immediately	$ 60.25
NI	5303300265		Screw,8-18 X 1/2 ,(2)				$ 15.17
NI	5304453707		Screw, 8-32 X 3/8   (Replaces: 5303311333)			Immediately	$ 15.92
NI	318228911		Harness,wiring ,cooktop		Appelez-nous	-
NI	318052193		Wiring Harness,pilot Light				$ 42.74
NI	318163600		Cleaner,cooktop		Appelez-nous	-
NI	5303325171		Washer,plastic		Appelez-nous	-
NI	3051050		Screw-shoulder				$ 12.29
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
