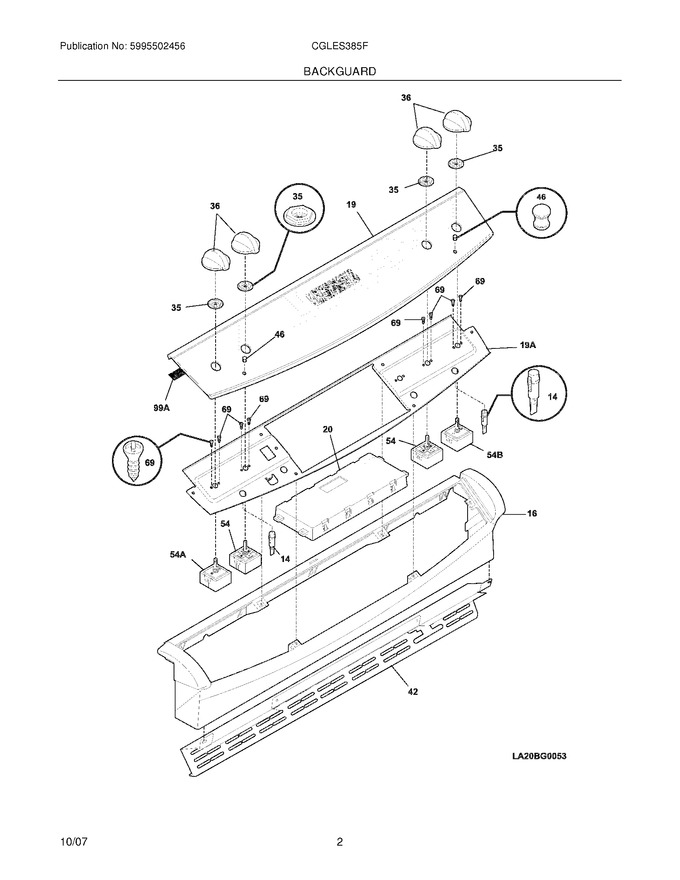

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318299102		Console,assy. ,black				$ 494.96
19	318313821		Control Panel Assembly,black ,w/touch Pad				$ 255.57
35	318183100		Support,glass ,black				$ 9.35
36	316223027		Knob,control ,black				$ 32.45
42	318298001		Trim,vent ,black ,upper				$ 59.01
46	318228301		Lens,indicator Light				$ 11.29
69	5303288565		Screw, 8-32 X 3/16   (Replaces: 5303323134)				$ 3.12
19A	318224403		Panel,control Mtg.				$ 199.61
99A	318223900		Gasket,dark Grey			Immediately	$ 82.80
F14	318293901		Light,indicator ,125v ,(2)				$ 53.66
F20	316462826		Controller,electronic ,es510x		Appelez-nous	-
F54	903136-9010		Switch,surface Unit ,small ,single   (Replaces: 318369615)			Immediately	$ 107.42
F54A	903136-9020		Switch,surface Unit ,large ,single   (Replaces: 318369616)			Immediately	$ 124.39
F54B	318191023		Switch,infinite ,dual   (Replaces: 318191027)			Immediately	$ 70.64
FNI	318224827		Harness,wiring ,timer		Appelez-nous	-
FNI	318228843		Harness,wiring ,main ,backguard		Appelez-nous	-
NI	5304453707		Screw,control Mtg.			Immediately	$ 15.92
NI	5304453707		Screw, 8-32 X 3/8   (Replaces: 5303311333)			Immediately	$ 15.92
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	5303300265		Screw,8-18 X 1/2 ,(4)				$ 15.17
