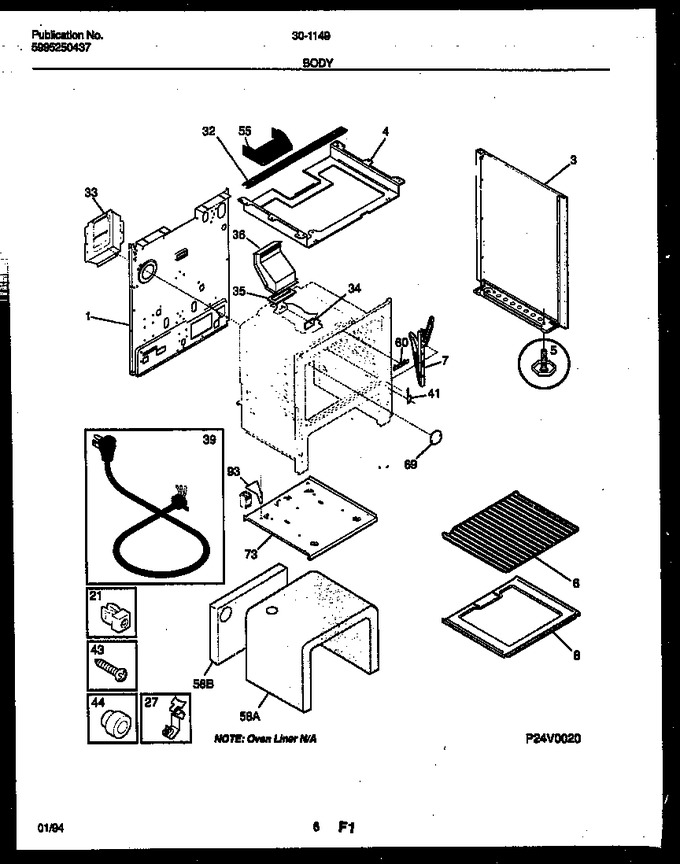

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3203082		Back-main		Appelez-nous	-
3	5303269518		Panel-bodyside, White, Rh		Appelez-nous	-
4	3204962		Burner Box		Appelez-nous	-
5	5303203397		Screw-leveling				$ 14.49
6	5303281625		Rack Oven		Appelez-nous	-
7	316007001		Hinge,oven Door ,(2)				$ 234.55
8	5303212540		Panel-oven Bottom		Appelez-nous	-
21	3014099		Spacer-bodyside, (8)				$ 3.62
27	5303284616		Clip-thermo Bulb				$ 9.86
32	3203441		Channel-burner Supt		Appelez-nous	-
33	316055601		Shield-spark Module		Appelez-nous	-
34	3018607		Cover Plate				$ 10.50
35	08067965		Gasket-flue		Appelez-nous	-
36	3131909		Flue		Appelez-nous	-
39	5304534377		Cord-electric Power   (Replaces: 3202006)				$ 26.85
41	3131570		Cover Hinge Cutout				$ 7.35
43	316282700		Screw-oven Bottom, 8-18 X 1-7/16   (Replaces: 3131732)				$ 9.93
44	3131903		Bumper				$ 55.36
55	3051368		Shield-flue Cover		Appelez-nous	-
60	5303015372		Cover-oven Front		Appelez-nous	-
69	3051218		Plate,oven Light		Appelez-nous	-
73	5303281627		Base-broiler		Appelez-nous	-
93	316055501		Shield, Igntr Connector		Appelez-nous	-
3A	5303269519		Panel-bodyside, White, Lh (non-illustrated)		Appelez-nous	-
55C	3202799		Shield-flue, (non-illustrated)		Appelez-nous	-
58A	3017142		Insulation, Oven Wrapper				$ 193.50
58B	3203541		Insulation, Oven Back		Appelez-nous	-
5A	3931015		Anti-tip Kit, (non-illustrated)		Appelez-nous	-
5B	5303288460		Nut, T-type, Leveling Screw (non-illustrated)				$ 27.14
8A	316064600		Support-oven Bottom (non-illustrated)				$ 18.95
