Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316281802		Shield,backguard ,rear Wall   (Replaces: 316416100)				$ 57.64
2	316497600		Shield,backguard ,inner				$ 66.31
15	316411403		Support,backguard ,white ,rh				$ 84.10
19	316424123		Panel,control ,white				$ 255.05
23	316419200		Bracket,clock ,(2)		Appelez-nous	-
36	316220000		Knob,top Valve ,white ,(4)				$ 77.97
40	316447362		Panel,manifold ,white				$ 53.45
42	316416205		Trim,extrusion ,gray   (Replaces: 316416201)				$ 51.57
56	316230708		Shield,backguard ,inner   (Replaces: 316230701)				$ 61.66
15A	316411402		Support,backguard ,white ,lh				$ 94.55
20A	316419701		Overlay,clock ,white ,w/mini Oven ,es510				$ 57.79
F20	316462806		Clock/timer,electronic ,es530				$ 338.33
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02

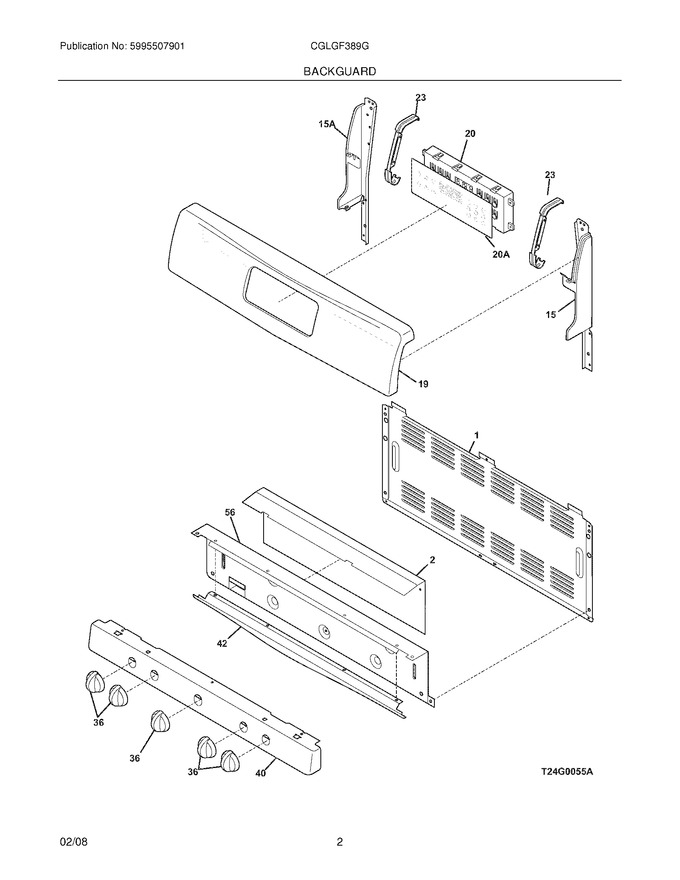

    View Diagram in Separate Window       Print Part List
