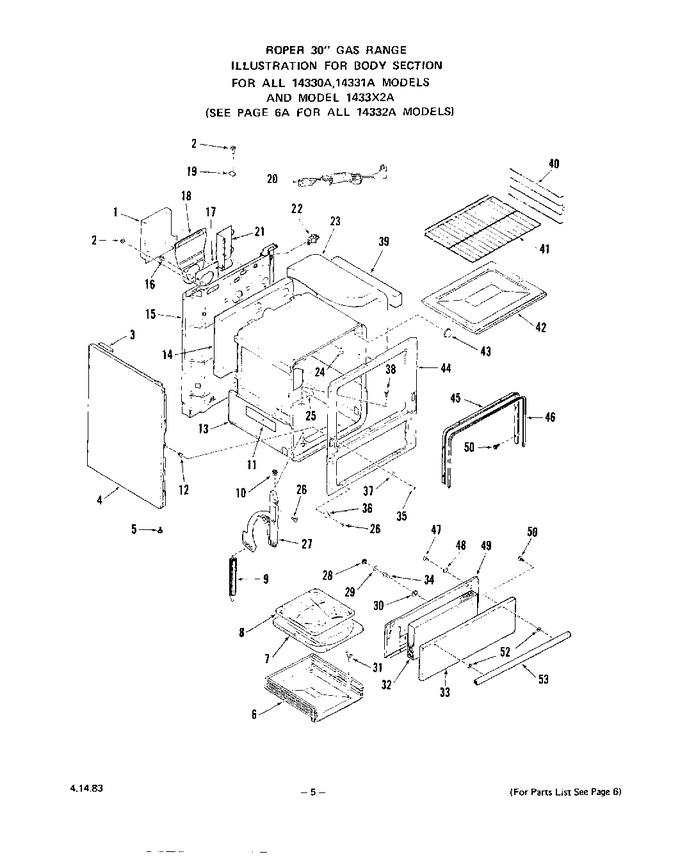

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	296011		Shield - Flue Deflector		Appelez-nous	-
2	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 7.16
3	303513		Pad-body Side (2 Required)		Appelez-nous	-
4	323090		Body Side (golden Wheat-right)		Appelez-nous	-
4	323085		Body Side (white-left)		Appelez-nous	-
4	323084		Body Side (white-right)		Appelez-nous	-
4	323091		Body Side (golden Wheat-left)		Appelez-nous	-
4	323093		Body Side (almond-left)		Appelez-nous	-
4	323092		Body Side (almond- Right)		Appelez-nous	-
4	325807		Body Side (black-left)		Appelez-nous	-
4	325806		Body Side (black-right)		Appelez-nous	-
5	69065		Leg Leveler (4 Required)		Appelez-nous	-
6	305259		Broiler Drawer		Appelez-nous	-
7	290171		Broiler Pan		Appelez-nous	-
8	313071		Broiler Pan Grid		Appelez-nous	-
9	308735		Spring-oven Door (2 Required)		Appelez-nous	-
10	304980		Nut-retainer (2 Required)		Appelez-nous	-
11	314487		Retainer-insulation (rt. Or Lt.)		Appelez-nous	-
12	296006		Grommet - Screw (8 Req.)		Appelez-nous	-
13	323854		Oven Body		Appelez-nous	-
14	296140		Insulation - Oven Back		Appelez-nous	-
15	324046		Main Back		Appelez-nous	-
16	DE81-07393A		Screw 10 - 32 X 17/32``   (Replaces: 102428)				$ 174.11
17	296010		Gasket-flue Deflector		Appelez-nous	-
18	300917		Flue Deflector		Appelez-nous	-
19	106767		Clip		Appelez-nous	-
20	235822		Range Service Cord		Appelez-nous	-
21	318443		Wire Shield		Appelez-nous	-
22	232150		Disconnect		Appelez-nous	-
23	296139		Insulation - Oven Top & Sides (1 Piece)		Appelez-nous	-
24	115533		Clip-thermostat Bulb (2 Required)		Appelez-nous	-
25	296097		Dart-button Head (2 Required)		Appelez-nous	-
26	112013		Screw 10-32 X 5/8``		Appelez-nous	-
27	303133		Hinge-oven Door (left)		Appelez-nous	-
27	303132		Hinge - Oven Door (right)		Appelez-nous	-
28	239764		Keps Nut		Appelez-nous	-
29	99279		Washer		Appelez-nous	-
30	306961		Catch-broiler Door Strike		Appelez-nous	-
31	278797		Thumbscrew-rt. Or Lt.		Appelez-nous	-
32	W10820036		Insulation-broiler Door (2 Required)   (Replaces: 296141)			Immediately	$ 27.45
33	322872		Front Panel-broiler Door		Appelez-nous	-
34	24668		Strike-broiler Door		Appelez-nous	-
35	WP303896		Screw 8abx1``   (Replaces: 303896)			Immediately	$ 66.12
36	285675		Hinge-broiler Door (lt. Or Rt.)				$ 180.31
37	303963		Washer		Appelez-nous	-
38	289730		Shoulder Screw 10-32x1/2``		Appelez-nous	-
39	W10820036		Insulation-burner Box Bottom Side (rt. Or Lt.)   (Replaces: 296141)			Immediately	$ 27.45
40	305409		Guide-oven Rack (rt. Or Lt.)		Appelez-nous	-
41	305408		Oven Rack (2 Required)		Appelez-nous	-
42	296070		Oven Bottom		Appelez-nous	-
43	101063		Plug Button		Appelez-nous	-
44	323357		Front Frame		Appelez-nous	-
45	296103		Retainer - Oven Door Seal		Appelez-nous	-
46	296102		Seal - Oven Door		Appelez-nous	-
47	239113		Screw 10-32x3/8``		Appelez-nous	-
48	69603		Lockwasher		Appelez-nous	-
49	302267		Lining-broiler Door		Appelez-nous	-
50	316365		Screw 10-32x7/16``		Appelez-nous	-
52	302343		Spacer-handle		Appelez-nous	-
53	292240		Handle		Appelez-nous	-
54	301624		Support-flue Deflector		Appelez-nous	-
