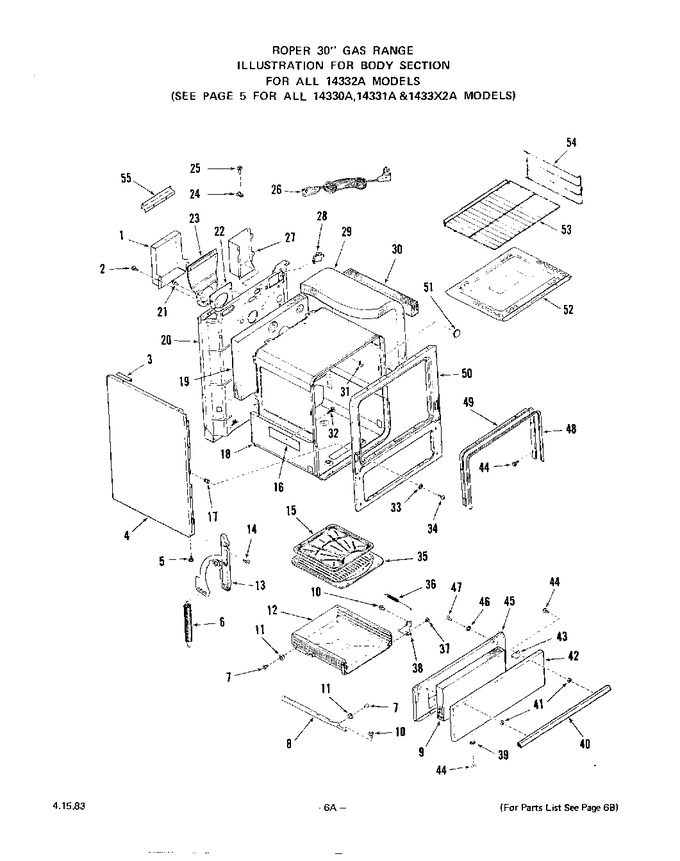

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	296011		Shield - Flue Deflector		Appelez-nous	-
2	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 7.16
3	303513		Spacer-main Top		Appelez-nous	-
4	323093		Body Side (almond-left)		Appelez-nous	-
4	323085		Body Side (white-left)		Appelez-nous	-
4	323084		Body Side (white-right)		Appelez-nous	-
4	323091		Body Side (wheat-left)		Appelez-nous	-
4	323090		Body Side (wheat-right)		Appelez-nous	-
4	323092		Body Side (almond- Right)		Appelez-nous	-
5	69065		Leg Leveler (4 Required)		Appelez-nous	-
6	308735		Spring-oven Door (lt. Or Rt.)		Appelez-nous	-
7	70275		Shoulder Rivet		Appelez-nous	-
8	WP691371		Broiler Drawer Guide (inc`s. 7 & 11) (left)   (Replaces: 296326)			Immediately	$ 64.81
8	296327		Broiler Drawer Guide (inc`s. 7 & 11) (right)		Appelez-nous	-
9	W10820036		Insulation-broiler Door (2 Required)   (Replaces: 296141)			Immediately	$ 27.45
10	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 7.16
11	69006		Roller		Appelez-nous	-
12	303904		Broiler Drawer (inc`s. 7 & 11)		Appelez-nous	-
13	303133		Hinge-oven Door (left)		Appelez-nous	-
13	303132		Hinge - Oven Door (right)		Appelez-nous	-
14	112013		Screw 10-32 X 5/8``		Appelez-nous	-
15	313071		Broiler Pan Grid		Appelez-nous	-
16	314487		Retainer-insulation (rt. Or Lt.)		Appelez-nous	-
17	296006		Grommet - Screw (8 Req.)		Appelez-nous	-
18	323854		Oven Body		Appelez-nous	-
19	296140		Insulation - Oven Back		Appelez-nous	-
20	324046		Main Back		Appelez-nous	-
21	DE81-07393A		Screw 10 - 32 X 17/32``   (Replaces: 102428)				$ 174.11
22	296010		Gasket-flue Deflector		Appelez-nous	-
23	300917		Flue Deflector		Appelez-nous	-
24	106767		Clip		Appelez-nous	-
25	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 7.16
26	235822		Range Service Cord		Appelez-nous	-
27	318443		Wire Shield		Appelez-nous	-
28	232150		Disconnect		Appelez-nous	-
29	296139		Insulation - Oven Top & Sides (1 Piece)		Appelez-nous	-
30	W10820036		Insulation-burner Box Bottom Side (rt. Or Lt.)   (Replaces: 296141)			Immediately	$ 27.45
31	115533		Thermostat Bulb Clip (2 Required)		Appelez-nous	-
32	296097		Dart-button Head (2 Required)		Appelez-nous	-
33	303963		Washer		Appelez-nous	-
34	WP303896		Screw 8abx1``   (Replaces: 303896)			Immediately	$ 66.12
35	290171		Broiler Pan		Appelez-nous	-
36	67017		Spring - Broiler Door (rt Or Lt)		Appelez-nous	-
37	305064		Shoulder Rivet		Appelez-nous	-
38	296125		Hinge-broiler Door (left)		Appelez-nous	-
38	296124		Hinge - Broiler Door (right)		Appelez-nous	-
39	21067		Washer		Appelez-nous	-
40	292240		Handle-broiler Door		Appelez-nous	-
41	302343		Spacer-handle		Appelez-nous	-
42	322872		Front Panel-broiler Door		Appelez-nous	-
43	296137		Spacer-broiler Door (2 Required)		Appelez-nous	-
44	316365		Screw 10-32x7/16``		Appelez-nous	-
45	296332		Lining - Broiler Door		Appelez-nous	-
46	21067		Washer		Appelez-nous	-
47	239113		Screw 10-32x3/8``		Appelez-nous	-
48	296102		Seal - Oven Door		Appelez-nous	-
49	296103		Retainer - Oven Door Seal		Appelez-nous	-
50	323357		Front Frame		Appelez-nous	-
51	101063		Plug Button		Appelez-nous	-
52	296070		Oven Bottom		Appelez-nous	-
53	305408		Oven Rack (2 Required)		Appelez-nous	-
54	305409		Guide-oven Rack (rt. Or Lt.)		Appelez-nous	-
55	301624		Support-flue Deflector		Appelez-nous	-
