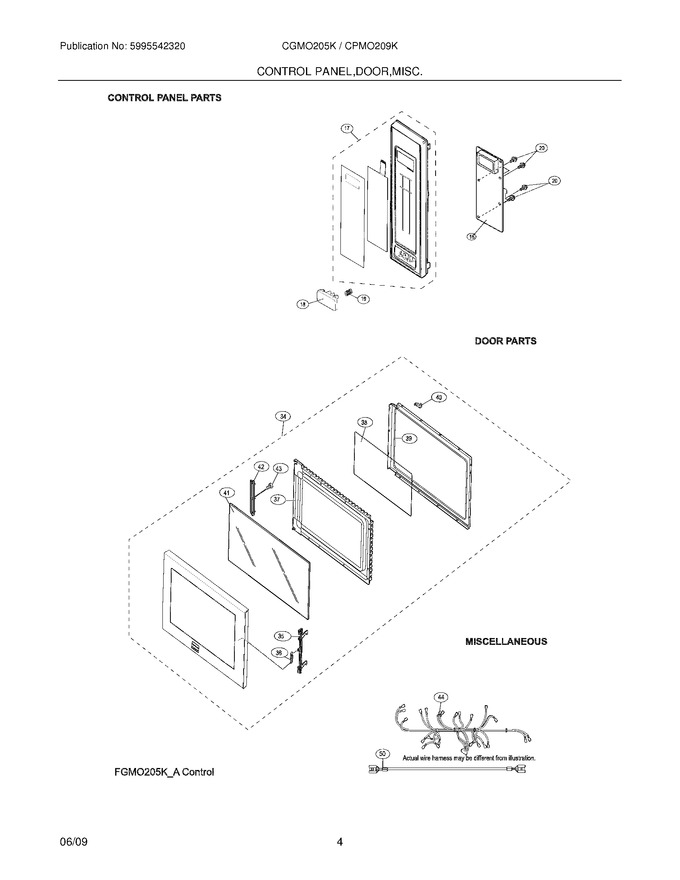

05 - Control Panel/door/misc
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 18 | 5304462915 | Push Button,door ,stainless |
|
$ 99.77 | |||||
| 19 | 5304440831 | Spring,door Button |
|
$ 20.29 | |||||
| 20 | 5304456930 | Screw,3 Mm X 10 Mm |
|
- | |||||
| 34 | 5304472849 | Door Assy,complete ,stainless/black |
|
- | |||||
| 35 | 5304441893 | Latch,door (Replaces: 5304440856) |
|
Immediately | $ 48.91 | ||||
| 36 | 5304440316 | Spring,door Latch |
|
Immediately | $ 61.00 | ||||
| 37 | 5304440857 | Panel,inner Door ,black |
|
$ 192.29 | |||||
| 38 | 5304440860 | Seal,door ,film |
|
$ 63.09 | |||||
| 39 | 5304440861 | Choke Cover,inner Door |
|
$ 73.02 | |||||
| 40 | 5304442145 | Door Stop |
|
- | |||||
| 41 | 5304472854 | Panel,door Glass ,black |
|
- | |||||
| 42 | 5304440862 | Door Stop |
|
- | |||||
| 43 | 5304452259 | Screw |
|
- | |||||
| F16 | 5304472840 | Control Board,printed Circuit |
|
$ 418.58 | |||||
| F17 | 5304472842 | Control Panel Assy,stainless/black |
|
- | |||||
| F44 | 5304440878 | Wiring Harness,main |
|
$ 156.45 | |||||
| F50 | 5304440870 | Wire,high Voltage-a |
|
- |
