View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Oven/cabinet

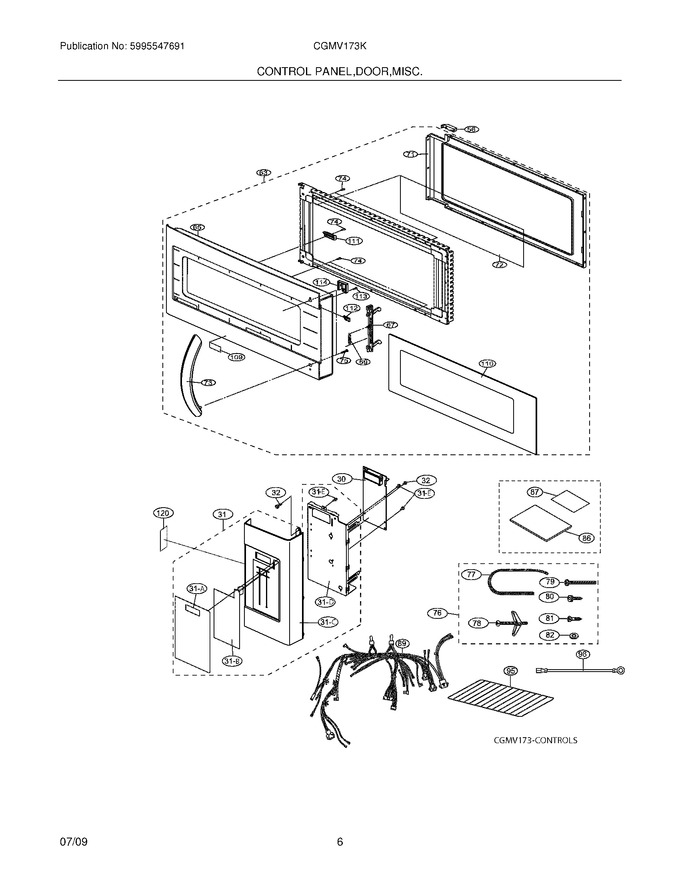

05 - Control Panel/door/misc
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 32 | 5304467710 | Screw,3 Mm X 8 Mm |
|
$ 14.18 | |||||
| 56 | 5304468199 | Door Stop |
|
$ 15.38 | |||||
| 65 | 5304473826 | Frame,door ,black |
|
$ 202.23 | |||||
| 67 | 5304440314 | Latch,door |
|
Immediately | $ 51.13 | ||||
| 69 | 5304440316 | Spring,door Latch |
|
Immediately | $ 61.00 | ||||
| 71 | 5304440320 | Frame,choke Cover ,inner Door |
|
- | |||||
| 72 | 5304468205 | Seal,door ,film |
|
$ 34.44 | |||||
| 73 | 5304473830 | Handle,door ,black |
|
$ 70.80 | |||||
| 74 | 5304451517 | Screw,4 Mm X 8 Mm |
|
$ 17.35 | |||||
| 75 | 5304473832 | Screw,4 Mm X 20 Mm |
|
- | |||||
| 76 | 5304464349 | Hardware Kit,installation (Replaces: 5304467765) |
|
Immediately | $ 57.11 | ||||
| 77 | 5303318761 | Sleeve,power Cord ,grommet |
|
$ 25.05 | |||||
| 78 | 5303318762 | Screw,toggle |
|
$ 11.71 | |||||
| 79 | 5304453895 | Screw,5mm X 85mm |
|
$ 16.68 | |||||
| 80 | 5304502863 | Screw,4 Mm X 8 Mm ,white (Replaces: 5304451552) |
|
$ 10.85 | |||||
| 81 | 5304453723 | Screw,5mm X 35mm |
|
$ 13.28 | |||||
| 82 | 5304453724 | Washer |
|
$ 12.68 | |||||
| 86 | 5304468216 | Template,installation ,top |
|
$ 27.98 | |||||
| 87 | 5304468217 | Template,installation ,wall |
|
- | |||||
| 95 | 5304440338 | Rack,microwave Oven ,wire |
|
$ 256.10 | |||||
| 109 | 5304471837 | Badge,nameplate ,gallery |
|
$ 57.49 | |||||
| 110 | 5304473834 | Glass,door ,black |
|
- | |||||
| 111 | 5304467794 | Clip,glass Retainer ,door |
|
$ 15.96 | |||||
| 112 | 5304473837 | Cap,door Glass ,black |
|
- | |||||
| 113 | 5304456930 | Screw,3 Mm X 10 Mm |
|
- | |||||
| 114 | 5304473840 | Cover,screw ,black |
|
- | |||||
| 120 | 5304468232 | Label,user Caution |
|
- | |||||
| 31C | 5304473815 | Cover,control Panel ,black |
|
$ 169.21 | |||||
| 31D | 5304473819 | Panel,control Mount |
|
$ 26.51 | |||||
| 31E | 5304461192 | Screw,3mm X 8mm ,(12) |
|
- | |||||
| F30 | 5304481625 | Control Board,printed Circuit (Replaces: 5304473806) |
|
$ 273.61 | |||||
| F31 | 5304473808 | Control Panel Assy,black |
|
$ 211.68 | |||||
| F31A | 5304473811 | Overlay,touch Control ,black |
|
$ 36.86 | |||||
| F31B | 5304473813 | Touch Control,key Pad |
|
$ 49.98 | |||||
| F63 | 5304473822 | Door Assy,black ,w/handle |
|
$ 288.49 | |||||
| F89 | 5304474568 | Wiring Harness,main |
|
$ 77.21 | |||||
| F96 | 5304467828 | Wire,ground |
|
- |
