SELECT A DIAGRAM
01 - Cover
03 - Dry Cab,heater
05 - Frnt Pnl,door
07 - Control Panel
09 - Motor,blower
11 - Burner,valve
SELECT A DIAGRAM
New Model Search:

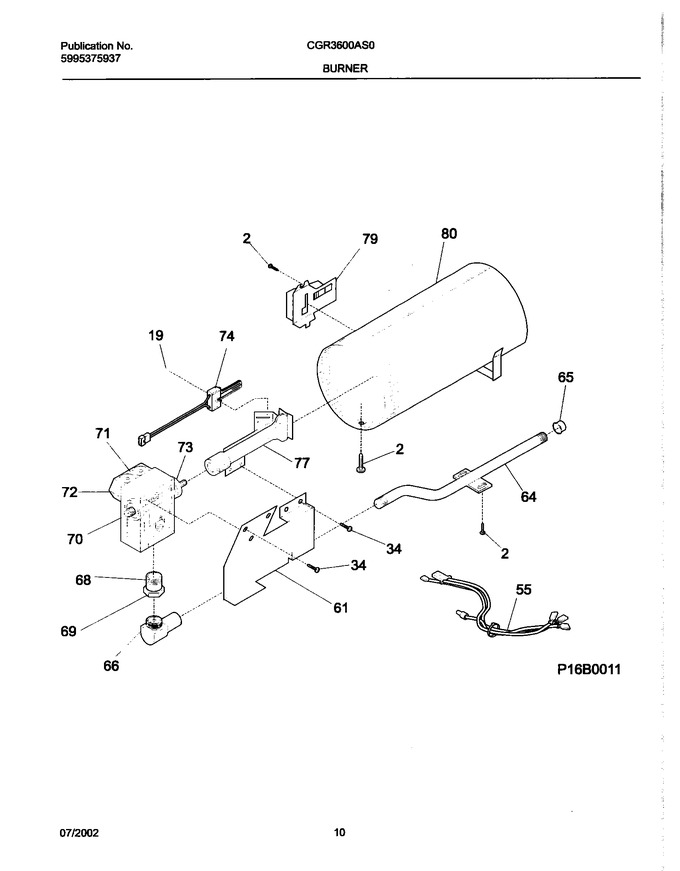

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 131168200 | Screw,8-18 X 0.31 ,12 |
|
Immediately | $ 14.18 | ||||
| 19 | 131715500 | Clip-igniter |
|
$ 9.22 | |||||
| 34 | 131243700 | Screw,pan Head ,8-18ab X 0.375 ,39 ,cr/sq Drive |
|
$ 3.36 | |||||
| 55 | 131827100 | Harness-gas Valve |
|
$ 51.77 | |||||
| 61 | 131418701 | Bracket-burner |
|
- | |||||
| 64 | 134145300 | Pipe |
|
- | |||||
| 65 | 08015112 | Cap-pipe |
|
- | |||||
| 66 | 131512000 | Elbow-coupler |
|
- | |||||
| 68 | 5362791200 | Tail Piece,brass |
|
$ 52.98 | |||||
| 69 | 08015194 | Nut-union, Hex |
|
- | |||||
| 70 | 5303207409 | Valve Gas |
|
$ 433.76 | |||||
| 71 | 5303307291 | Coil-secondary |
|
- | |||||
| 72 | 5303307292 | Coil-booster |
|
- | |||||
| 73 | 5303207410 | Orifice, Natural Gas |
|
$ 80.09 | |||||
| 77 | 131762900 | Assy-burner |
|
- | |||||
| 79 | 5303281135 | Sensor |
|
Immediately | $ 102.06 | ||||
| 80 | 131904500 | Burner Tube-riveted |
|
- | |||||
| F74 | 5303937186 | Ignitor Assy (Replaces: 5303281151) |
|
$ 80.61 | |||||
| NI | 131776600 | Lp Conversion Kit |
|
- |
