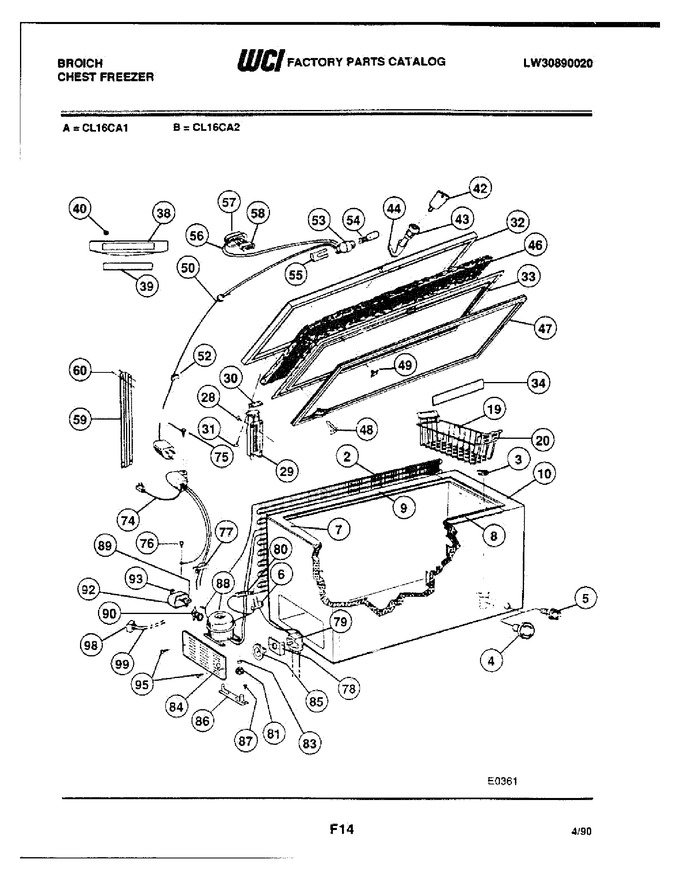

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5300120781 | Condenser-external (service Replacement Part Only. Not O |
|
- | |||||
| 3 | 5306593887 | Plug, Drain, Liner |
|
- | |||||
| 4 | 5306599932 | Plug Drain Shell |
|
- | |||||
| 5 | 06594053 | Adapter, Hose |
|
- | |||||
| 6 | 06599967 | Grommet |
|
- | |||||
| 7 | 5300128979 | Breaker Ends |
|
- | |||||
| 8 | 5300900265 | Moulding |
|
- | |||||
| 9 | 5300900265 | Moulding |
|
- | |||||
| 10 | 5303209630 | Breaker Corner |
|
- | |||||
| 19 | 5308016768 | Basket |
|
- | |||||
| 20 | F128977 | Handle Basket-brown |
|
- | |||||
| 28 | 5303091426 | Screw Hinge Base |
|
- | |||||
| 29 | 297321900 | Hinge (Replaces: 5303925006) |
|
$ 90.01 | |||||
| 30 | 5308037852 | Spacer Hinge Wing |
|
- | |||||
| 31 | 5309950602 | Screw-hinge Wing |
|
$ 5.30 | |||||
| 32 | 3017756 | Lid-exterior-almond |
|
- | |||||
| 33 | F128975 | Panel-inner Lid |
|
- | |||||
| 34 | 3017731 | Light Shield |
|
- | |||||
| 38 | 5309950054 | Handle |
|
- | |||||
| 39 | F000122456 | Insert |
|
- | |||||
| 40 | F57154 | Fastener Handle |
|
- | |||||
| 42 | 297147700 | Key Lock (Replaces: 5308037402) |
|
Immediately | $ 7.57 | ||||
| 43 | 5300190358 | Lock-complete |
|
- | |||||
| 44 | 5300300791 | Lock Hook |
|
- | |||||
| 46 | 08016778 | Insulation-lid |
|
- | |||||
| 47 | 5300128165 | Gasket |
|
- | |||||
| 48 | 5303091422 | Clip Panel |
|
- | |||||
| 49 | F86215 | Clip Panel With Signal Light |
|
- | |||||
| 50 | F129555 | Wire Harness Lid |
|
- | |||||
| 51 | 216858001 | Screw-ground Wire (Replaces: 5303161215) |
|
Immediately | $ 10.85 | ||||
| 53 | 5306599955 | Socket Light |
|
- | |||||
| 54 | 5303091423 | Light Bulb |
|
- | |||||
| 55 | 5306599968 | Retainer Socket |
|
- | |||||
| 56 | 06599965 | Jumper Wire |
|
- | |||||
| 57 | 5308037857 | Sealing Cap |
|
- | |||||
| 58 | 5308002706 | Signal Light |
|
$ 39.11 | |||||
| 59 | F129554-P | Cover-lid Harness |
|
- | |||||
| 60 | 5303161233 | Screw |
|
- | |||||
| 74 | F129555 | Wiring Harness |
|
- | |||||
| 75 | 08009412 | Screw |
|
- | |||||
| 76 | 08009412 | Screw |
|
- | |||||
| 77 | 08016762 | Clip Wires |
|
- | |||||
| 78 | 5308016760 | Bracket |
|
- | |||||
| 79 | 5308037987 | Cold Control |
|
- | |||||
| 80 | 5303305677 | Drier (Replaces: 5308000027) |
|
Immediately | $ 31.67 | ||||
| 81 | 5308008778 | Grommet |
|
- | |||||
| 83 | 5309950343 | Clip Compr |
|
- | |||||
| 84 | 3003664 | Access Panel |
|
- | |||||
| 85 | 5308016783 | Control Knob |
|
- | |||||
| 86 | 08016764 | Support Compressor |
|
- | |||||
| 87 | 08016776 | Screw-support |
|
- | |||||
| 88 | 5303916007 | Compressor |
|
- | |||||
| 89 | 5303017753 | Relay |
|
- | |||||
| 90 | 5308037789 | Overload |
|
- | |||||
| 92 | 5303006411 | Cover, Terminal |
|
- | |||||
| 93 | 5303006412 | Clamp Cover |
|
- | |||||
| 95 | 216858001 | Screw (Replaces: 5303161215) |
|
Immediately | $ 10.85 | ||||
| 98 | 5303916391 | Run Capacitor |
|
- | |||||
| 99 | 5303091425 | Harness-run Capacitor |
|
- |
