01 - Cover
03 - Upper Cabinet/drum Heater
05 - Motor/blower/belt
07 - Control Panel
09 - Lower Cabinet/top
11 - Motor/tub
13 - Transmission
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

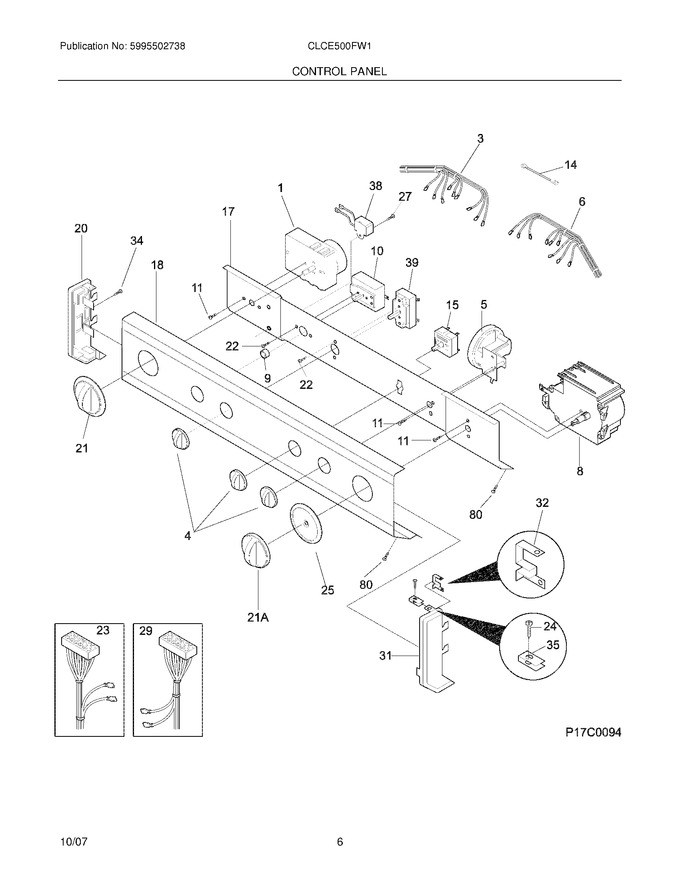

| 4 | 131873401 | Knob,rotary ,white/dk Gray (Replaces: 131873404) |
|
$ 49.73 | |||||
| 5 | 134422700 | Switch,pressure ,3 Position ,3/4 Hp |
|
Immediately | $ 98.06 | ||||
| 9 | 131111501 | Button,start Switch ,white ,push Type |
|
$ 13.79 | |||||
| 11 | 218359202 | Screw,cr Pan Head `8-32 X 0.250 ,thread Forming (Replaces: 5303283289) |
|
$ 10.63 | |||||
| 17 | 134263400 | Bracket,control Mount |
|
- | |||||
| 18 | 134884600 | Panel,trimplate ,console Front |
|
- | |||||
| 20 | 131288101 | End Cap,white ,lh |
|
$ 53.02 | |||||
| 21 | 131873304 | Knob,dryer Timer ,white |
|
Immediately | $ 59.54 | ||||
| 22 | 131311700 | Screw,pan Head Quad ,8-32 X 0.15 |
|
- | |||||
| 24 | 134156200 | Screw,flat Head ,8-18ab X 0.44 ,quad Drive |
|
Immediately | $ 14.89 | ||||
| 25 | 131976804 | Indicator,timer Pointer ,white/dark Gray,washer |
|
$ 36.33 | |||||
| 27 | 131892100 | Screw,6-20b X 0.230 |
|
- | |||||
| 31 | 131288211 | End Cap, White, Rh |
|
$ 64.79 | |||||
| 32 | 3204357 | Clip-grounding |
|
$ 60.11 | |||||
| 34 | 131243700 | Screw, Pan Head, 8-18ab X 0.375 |
|
$ 3.36 | |||||
| 35 | 5308014350 | Clip,end Cap Mtg ,u-type |
|
- | |||||
| 80 | 131168200 | Screw,10-16ab X 0.375 (Replaces: 134547800) |
|
Immediately | $ 14.18 | ||||
| 21A | 131977201 | Knob,washer Timer ,white |
|
$ 70.85 | |||||
| F1 | 5303297177 | Timer - Dryer |
|
$ 229.64 | |||||
| F10 | 131628900 | Switch-push Start |
|
$ 55.80 | |||||
| F14 | 134446800 | Resistor,power |
|
$ 66.68 | |||||
| F15 | 134410100 | Switch,temperature ,3 Position |
|
$ 45.68 | |||||
| F23 | 134605500 | Wiring Harness,main |
|
$ 144.64 | |||||
| F29 | 134895800 | Wiring Harness,washer ,lower |
|
$ 177.70 | |||||
| F3 | 134066000 | Wiring Harness,dryer Control |
|
$ 266.12 | |||||
| F38 | 5303286537 | Buzzer |
|
$ 93.61 | |||||
| F39 | 134400000 | Switch,rotary ,2 Position |
|
$ 58.59 | |||||
| F6 | 134542500 | Wiring Harness,washer Control ,w/temp Switch |
|
$ 238.77 | |||||
| F8 | 131758600 | Timer-washer |
|
Immediately | $ 352.01 | ||||
| FNI | 134101400 | Terminal Block,main |
|
Immediately | $ 55.99 | ||||
| NI | 5304426200 | Screw,terminal Block |
|
- |
