SELECT A DIAGRAM

01 - Cover


03 - Upper Cabinet/drum Heater


05 - Motor/blower/belt

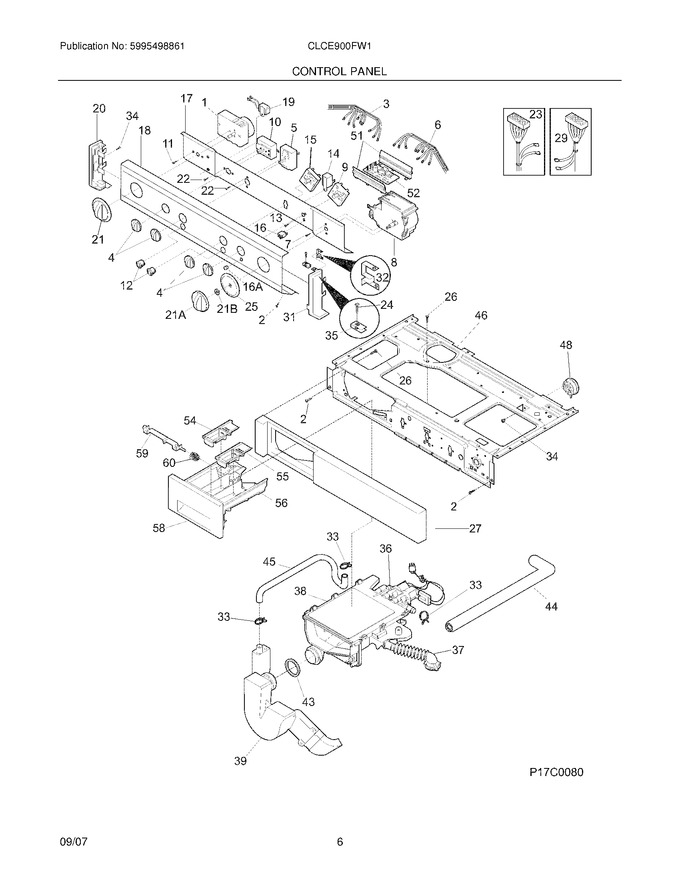

07 - Control Panel


09 - Lower Cabinet/top


11 - Motor/tub


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	131168200		Screw,pan Head ,8-18b X 0.31			Immediately	$ 14.18
4	131873401		Knob,rotary ,white				$ 49.73
7	131243800		Screw,pan Hd Locking ,8-32ca X 0.375 ,cup Point				$ 10.46
11	218359202		Screw,cr Pan Head `8-32 X 0.250 ,thread Forming   (Replaces: 5303283289)				$ 10.63
13	131311700		Screw,pan Head Quad ,8-32 X 0.15		Appelez-nous	-
17	134263400		Bracket,control Mount		Appelez-nous	-
18	134860700		Panel,trimplate ,white ,console Front		Appelez-nous	-
20	131288101		End Cap,white ,lh				$ 53.02
21	131873304		Knob,dryer Timer ,white   (Replaces: 131873301)			Immediately	$ 59.54
22	3161259		Screw,switch Mtg ,6-32 X 0 .19 ,(2) ,sems				$ 6.83
24	134156200		Screw,flat Head ,8-18ab X 0.44 ,quad Drive			Immediately	$ 14.89
25	131167701		Indicator,timer Pointer ,white/blue ,washer				$ 61.81
26	131823400		Screw,8-18 X 2.00				$ 1.42
27	131870600		Panel,disp Drawer Mt.				$ 204.49
31	131288211		End Cap, White, Rh				$ 64.79
32	3204357		Clip-grounding				$ 60.11
33	134737300		Clamp   (Replaces: 131306216)				$ 20.13
34	131243700		Screw, Pan Head, 8-18ab X 0.375				$ 3.36
35	5308014350		Clip,end Cap Mtg ,u-type		Appelez-nous	-
37	131271600		Hose-tub				$ 90.01
39	131863300		Siphon				$ 30.96
43	131749200		Gasket-seal				$ 20.33
44	131786000		Hose-dispenser				$ 114.98
45	131786100		Hose,siphon/valve				$ 66.62
46	134191412		Panel,control Mtg. ,wing Bend				$ 168.89
51	134426400		Bracket,pc Board Mount ,(2)		Appelez-nous	-
54	131272100		Cover-bleach				$ 42.50
55	131272000		Cover-softener				$ 71.66
56	131271910		Drawer,dispenser				$ 52.03
58	131729500		Handle,dispenser ,with Trim				$ 150.03
59	131714900		Latch,drawer Handle ,white				$ 44.94
60	131427500		Spring				$ 14.07
16A	131724800		Lens,status Light ,clear				$ 12.06
21A	131167601		Knob-washer Timer, White				$ 54.95
21B	5308015493		Spacer,washer ,timer Shaft				$ 14.36
F1	131960800		Timer,dryer ,4 Off				$ 241.46
F10	134399700		Switch,start ,lcd			Immediately	$ 83.77
F12	134040800		Switch,on/off ,white ,round				$ 65.92
F14	131724500		Buzzer				$ 72.82
F15	134437700		Switch,water Temp ,4 Position				$ 12.81
F16	131724700		Lamp,status Light				$ 59.59
F19	5303286537		Buzzer				$ 93.61
F23	134605400		Wiring Harness,main		Appelez-nous	-
F29	134571400		Wiring Harness,main ,washer				$ 261.03
F3	134136700		Wiring Harness,dryer Control				$ 225.44
F36	131974700		Valve,dispenser ,w/seal			Immediately	$ 104.10
F38	131803710		Dispenser Assy				$ 339.83
F48	134818201		Switch,pressure ,single Level				$ 52.76
F5	134399900		Switch,dryer Temp ,lcd				$ 45.52
F52	134216300		Control Board,moisture Sensor				$ 67.62
F6	134392000		Wiring Harness,washer Control				$ 102.53
F8	134803600		Timer,washer				$ 440.98
F9	134400000		Switch,rotary ,2 Position				$ 58.59
NI	131931201		Dampener,vibration ,3.5 X 2 X 2 In. ,foam				$ 14.02
NI	5304464772		Strap,plastic   (Replaces: 5303161300)				$ 10.63
NI	131307900		Clamp,siphon/bellows				$ 11.34

    View Diagram in Separate Window       Print Part List
