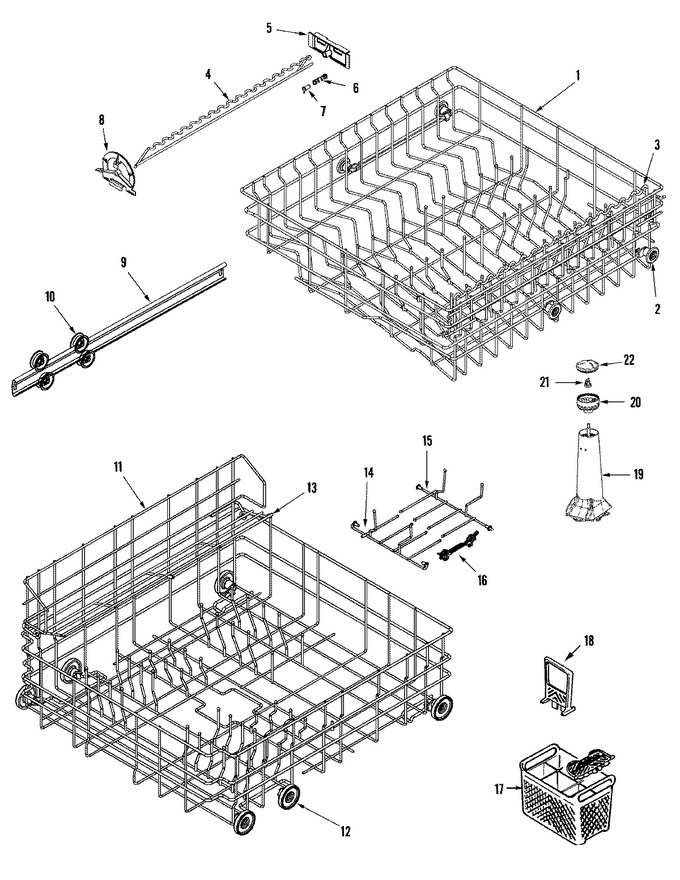

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	99002529		Rack Assembly (upr)		Appelez-nous	-
2	WP903093		Wheel Assembly (upr)   (Replaces: 903093)			Immediately	$ 9.65
3	99002456		Shelf, Rack (upr)		Appelez-nous	-
4	99002125		Handler, Cup		Appelez-nous	-
5	99001439		Support, Cup Handler (rear)		Appelez-nous	-
6	99001440		Spring, Cup Handler Support		Appelez-nous	-
7	99001461		Support Cup, Varilock (rear)		Appelez-nous	-
8	99001438		Support, Cup Handler (frt)		Appelez-nous	-
9	Y912545		Track, Rack				$ 40.33
9	WP99002135		Stop, Rack (gray)   (Replaces: 99002135)				$ 7.92
10	WP99002947		Shaft, Tub Wheel   (Replaces: 99002343)			Immediately	$ 10.58
10	99002342		Wheel, Tub				$ 8.89
10	WPY912798		Washer, Tub Wheel   (Replaces: Y912798)				$ 6.90
11	99002530		Rack Assembly (lwr)		Appelez-nous	-
12	WP99002780		Wheel Assembly (lwr)   (Replaces: 903095)			Immediately	$ 9.90
13	99002139		Shelf, Rack (lwr)		Appelez-nous	-
14	99002137		Tine, Bowl (frt)				$ 26.65
15	WP99002138		Tine, Bowl (rear)   (Replaces: 99002138)				$ 61.64
16	WPY912709		Clip, Adjustable Peg   (Replaces: Y912709)			Immediately	$ 7.07
17	WP6-918873		Basket, Silverware (w/cover)   (Replaces: 99001751)			Immediately	$ 54.28
18	Y912708		Handle, Silverware Basket		Appelez-nous	-
19	99001533		Tower, Spray (w/shaft-gray)		Appelez-nous	-
20	99001442		Diverter, Spray (gray)				$ 5.84
21	99001426		Nut, Discharge Housing				$ 5.84
22	99001443		Cap, Spray Diverter (gray)				$ 5.51
NI	99002017		Cap, Rack (light Gray)				$ 5.22
