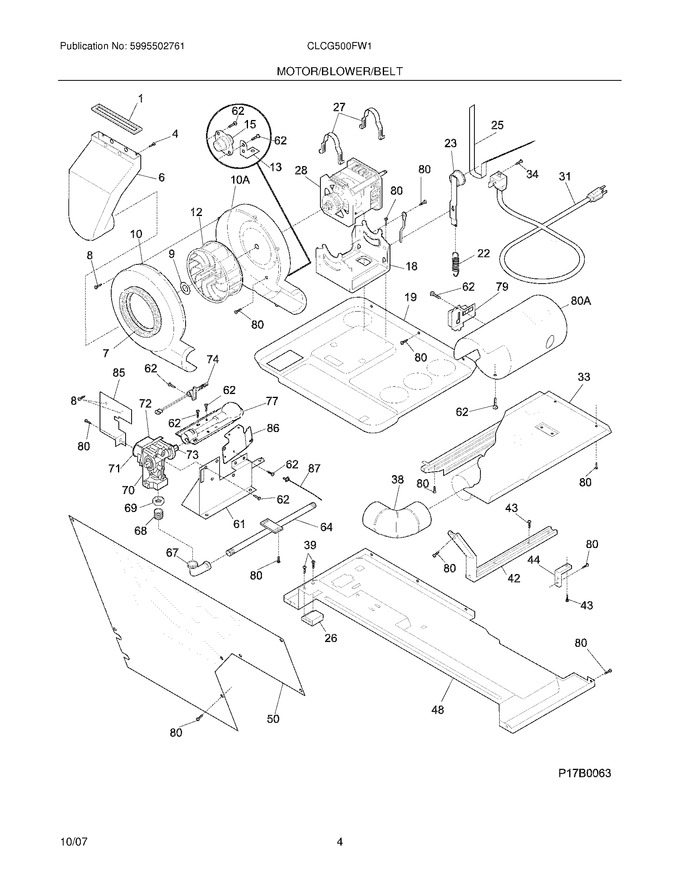

05 - Motor/blower/belt


07 - Control Panel


09 - Lower Cabinte/top


11 - Motor/tub


13 - Transmission


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131295200		Seal-air Duct				$ 16.30
4	131362400		Fastener,push-in				$ 9.41
6	5304521121		Duct,air   (Replaces: 134086300)				$ 118.56
7	3204490		Seal-housing To Air Duct				$ 14.18
8	3205245		Screw,pan Head ,6-18ab X 0.60		Appelez-nous	-
9	5304488479		Clamp   (Replaces: 5303304824)			Immediately	$ 32.09
10	134611700		Housing,blower ,front ,with Seal				$ 50.46
12	131476300		Blower Wheel			Immediately	$ 47.00
13	134608400		Ground Strap,thermostat		Appelez-nous	-
18	131413600		Cradle,motor Mount ,with Idler Stud				$ 104.30
19	134613501		Panel,motor Cradle Mt ,upper		Appelez-nous	-
22	3205241		Spring-idler				$ 75.83
23	5304507499		Idler Arm Assy,with Pulley   (Replaces: 131863100)			Immediately	$ 42.66
26	5303212870		Block,support ,bottom Panel		Appelez-nous	-
27	134242400		Clamp,motor Mtg.			Immediately	$ 35.76
33	131731410		Shield,access Area ,cover		Appelez-nous	-
34	134154100		Screw,hex Washer Head ,10-32 X 0.375 ,ground				$ 13.46
38	3204320		Elbow,exhaust Duct		Appelez-nous	-
39	131205100		Screw,no.8 Pan Head ,10-10b X 0.500 ,cr/sq Drive			Immediately	$ 14.18
42	5304439185		Bracket,marriage ,interior		Appelez-nous	-
43	131751500		Screw,hex Head ,12-24t 0.63				$ 9.50
44	3204326		Bracket,l Mounting ,cabinet Rear ,external				$ 43.24
48	131731310		Panel,dryer ,bottom Rear		Appelez-nous	-
50	3204329		Cover,safety ,lower Front				$ 40.16
61	5303309493		Bracket,gas Valve Mtg		Appelez-nous	-
62	131243700		Screw, Pan Head, 8-18ab X 0.375				$ 3.36
64	134145200		Pipe,gas		Appelez-nous	-
80	131168200		Screw,10-16ab X 0.375   (Replaces: 134547800)			Immediately	$ 14.18
85	134287300		Shield,heat		Appelez-nous	-
86	134264800		Plate,adapter		Appelez-nous	-
87	5304528020		Cable Tie,push Mount ,5.20 Inch   (Replaces: 131964400)				$ 9.41
10A	137551800		Housing,blower ,rear   (Replaces: 134608200)			Immediately	$ 107.00
F15	134721400		Thermostat,temp Control		Appelez-nous	-
F25	137292700		Belt,dryer Drive   (Replaces: 134503900)			Immediately	$ 9.34
F28	8581341966035		Motor,dryer Drive ,with Pulley   (Replaces: 134196600)			Immediately	$ 142.51
F31	134500500		Power Cord,electric Svce				$ 43.24
F67	134769400		Elbow,gas Fitting		Appelez-nous	-
F68	134185100		Tail Piece,coupling		Appelez-nous	-
F69	5308015194		Union,hex Nut				$ 13.72
F70	5303207409		Valve Gas				$ 433.76
F71	5300622602		Solenoid,secondary Coil		Appelez-nous	-
F72	5308015680		Solenoid,booster Coil		Appelez-nous	-
F73	5303211036		Orifice,natural Gas ,size 44		Appelez-nous	-
F74	5304517325		Igniter Assy   (Replaces: 134393700)				$ 229.55
F77	134197700		Burner,gas				$ 64.49
F79	5303281135		Sensor,radiant			Immediately	$ 102.06
F80A	131712405		Tube-burner   (Replaces: 131712401)				$ 34.70
FNI	134391000		Lp Conversion Kit,natural To Lp		Appelez-nous	-
