01 - Control Panel

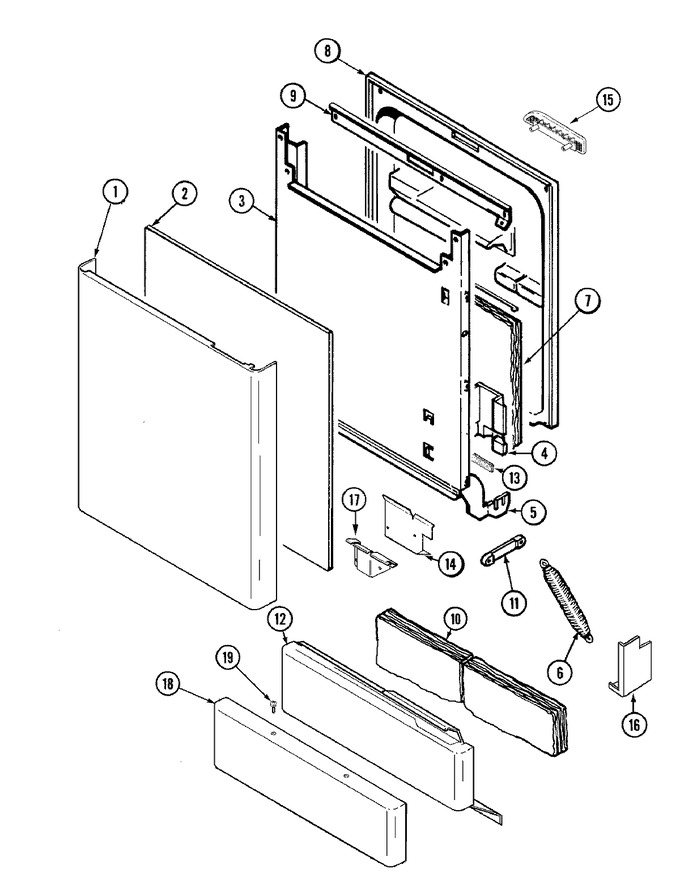

02 - Door (adw862eas)
03 - Pump & Motor
04 - Rinse Aid & Soap Dispenser
05 - Track & Rack Assembly
06 - Tub
07 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 912619 | Screw, Steel | 10 |
|
$ 11.60 | ||||
| 1 | 99002169 | Panel, Decorator (stnls) | 10 |
|
- | ||||
| 2 | 99001415 | Filler, Front Panel | 10 |
|
- | ||||
| 3 | 99001688 | Ground Wire, Reinforcement | 10 |
|
- | ||||
| 3 | 99002176 | Door, Outer | 10 |
|
- | ||||
| 4 | 99002188 | Retainer, Wire | 10 |
|
- | ||||
| 4 | WP99002362 | Spacer, Foam (Replaces: 99002362) | 10 |
|
$ 5.55 | ||||
| 5 | 99001075 | Screw | 10 |
|
$ 5.81 | ||||
| 5 | 99001899 | Hinge (rt) | 10 |
|
- | ||||
| 5 | 99001898 | Hinge (lt) | 10 |
|
- | ||||
| 6 | 99002469 | Spring, Door | 10 |
|
$ 5.83 | ||||
| 7 | WP6-920580 | Insulation, Door (Replaces: 99002411) | 10 |
|
$ 28.77 | ||||
| 8 | 99002547 | Damper, Door (assembly) | 10 |
|
- | ||||
| 8 | 99002388 | Door, Inner | 10 |
|
- | ||||
| 8 | 99002499 | Felt, Vent (door) | 10 |
|
$ 32.11 | ||||
| 8 | Y912620 | Screw | 10 |
|
$ 5.48 | ||||
| 9 | Y913178 | Seal, Reinforcement | 10 |
|
$ 7.50 | ||||
| 9 | Y913093 | Bar, Reinforcement | 10 |
|
- | ||||
| 10 | 99002548 | Damper, Access Panel | 10 |
|
- | ||||
| 10 | 99002412 | Insulation, Access Panel | 10 |
|
- | ||||
| 11 | WP912653 | Link, Door Spring (Replaces: 912653) | 10 |
|
Immediately | $ 7.45 | |||
| 12 | 912636 | Panel, Access (blk) | 10 |
|
- | ||||
| 12 | WP6-912366 | Screw (Replaces: 912366) | 10 |
|
$ 7.29 | ||||
| 12 | 99001989 | Cover, Vent (access Panel) | 10 |
|
- | ||||
| 13 | 903233 | Foam Strip, Insulation | 10 |
|
- | ||||
| 14 | WP6-912366 | Screw (Replaces: 912366) | 10 |
|
$ 7.29 | ||||
| 14 | 912641 | Shield, Tub (blk) | 10 |
|
- | ||||
| 15 | Y912910 | Cover, Vent | 10 |
|
$ 30.43 | ||||
| 15 | Y912620 | Screw | 10 |
|
$ 5.48 | ||||
| 16 | Y912810 | Shield, Access Panel (lt) | 10 |
|
- | ||||
| 16 | Y912809 | Shield, Access Panel (rt) | 10 |
|
- | ||||
| 16 | WP6-912366 | Screw (Replaces: 912366) | 10 |
|
$ 7.29 | ||||
| 17 | WP6-912366 | Screw (Replaces: 912366) | 10 |
|
$ 7.29 | ||||
| 17 | 912642 | Cover, Wire (blk) | 10 |
|
- | ||||
| 18 | 912525 | Filler, Access Panel | 10 |
|
- | ||||
| 18 | 99002204 | Cap, Access Panel (stnls) | 10 |
|
- | ||||
| 19 | WP912618 | Screw (Replaces: 912618) | 10 |
|
$ 6.98 | ||||
| 19 | WP489128 | Screw (Replaces: 912365) | 10 |
|
$ 9.79 |
