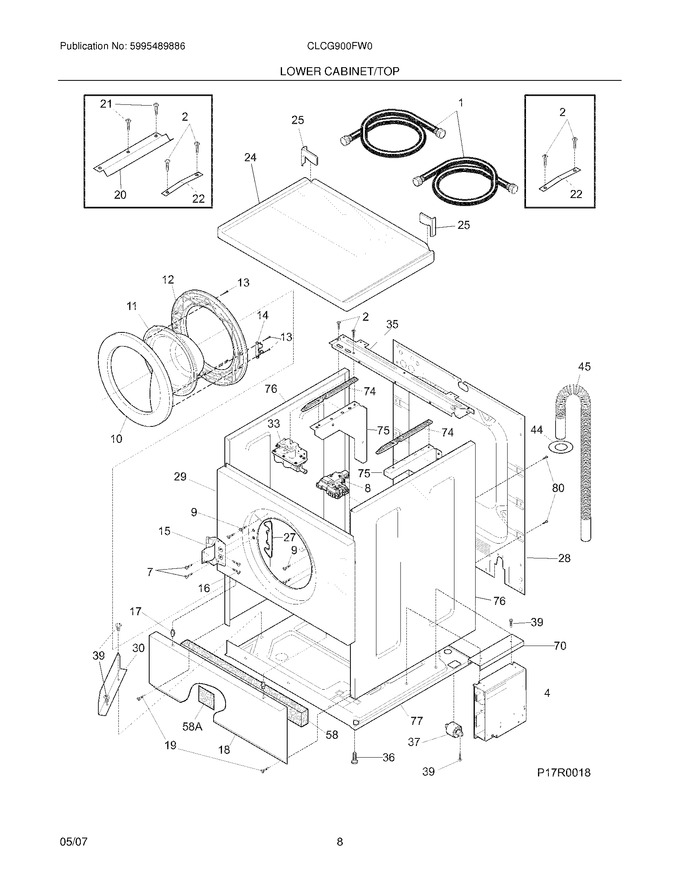

09 - Lower Cabinet/top


11 - Motor/tub


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3804FF		Hose,inlet ,48 Inch Long   (Replaces: 5303271009)			Immediately	$ 16.80
2	131168200		Screw,pan Head ,8-18b X 0.31			Immediately	$ 14.18
7	131205300		Screw,10-16 X 0.750			Immediately	$ 12.10
9	131303300		Screw,pan Head ,10-16ab X 0.500 ,locking		Appelez-nous	-
10	134224600		Frame,outer Door				$ 220.76
11	131278800		Panel,door Glass				$ 209.27
12	134195900		Frame,inner Door				$ 149.21
13	134227100		Screw,flat Head ,10-16 X 0.600 ,quadrex				$ 10.61
14	131763310		Striker,door/lock/sw			Immediately	$ 17.15
15	134202200		Hinge,door				$ 190.94
16	131696300		Screw,quad Pan Head ,10-16 X 0.312				$ 9.93
17	131346400		Pin,panel Locator				$ 12.44
18	131279300		Panel,service ,white ,front				$ 231.95
19	218362501		Screw,hex Washer Hd ,8-18ab X 1.125   (Replaces: 131358400)				$ 12.05
20	131460900		Bracket,top Panel Mtg. ,front				$ 48.56
21	131243700		Screw, Pan Head, 8-18ab X 0.375				$ 3.36
22	131279500		Retainer,spring Steel				$ 30.43
24	134086862		Panel,white ,top				$ 164.33
25	134381910		Trim,filler ,white ,rs-top Panel				$ 13.76
25	134381900		Trim,filler ,white ,ls-top Panel				$ 13.39
27	134193300		Bracket,hinge Support		Appelez-nous	-
28	131978500		Panel-back				$ 114.59
29	131752040		Panel,cabinet Front ,white				$ 149.31
30	131859600		Shield-overflow				$ 38.12
35	131732903		Bracket,reinforcement ,top Rear		Appelez-nous	-
36	131841600		Leveling Leg Assy,bolt,pad & Nut				$ 29.06
37	131304200		Roller Assy				$ 41.92
39	134178901		Screw,8-18ab X 0.455				$ 14.89
44	131707800		Ring-drain Hose				$ 45.25
58	131800410		Insulation,noise Absorber		Appelez-nous	-
70	134048600		Shield,drip Protector		Appelez-nous	-
74	134301300		Spacer,dryer Mtg ,rs		Appelez-nous	-
74	134301310		Spacer,dryer Mtg ,ls		Appelez-nous	-
75	134301400		Brace,side ,(2)		Appelez-nous	-
76	134390701		Panel,side ,white ,rs/ls ,(2)				$ 155.24
77	131458220		Base Plate				$ 76.86
80	131168200		Screw,10-16ab X 0.375   (Replaces: 134547800)			Immediately	$ 14.18
58A	131744202		Damper,vibration		Appelez-nous	-
F33	134812800		Valve,water ,115 V				$ 162.91
F4	134149220		Controller Assy,speed ,w/base & Shield				$ 245.12
F45	134592700		Hose,drain			Immediately	$ 89.31
F8	131763256		Door Lock/switch Assy   (Replaces: 131763245)			Immediately	$ 146.76
NI	5303161296		Washer-inlet Hose			Immediately	$ 2,372.96
