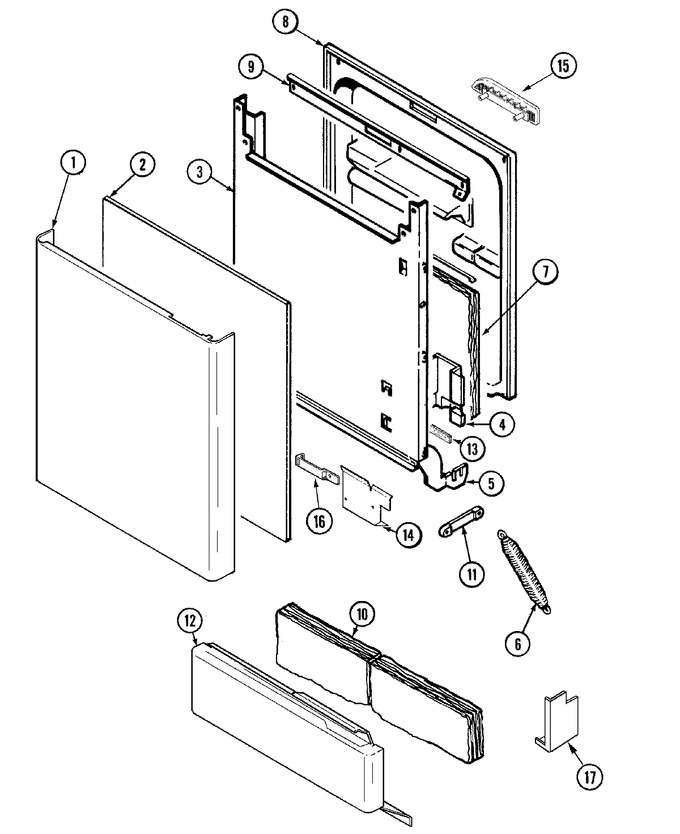

02 - Door


03 - Pump & Motor


04 - Rinse Aid & Soap Dispenser


05 - Track & Rack Assembly


06 - Tub


07 - Wiring Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	99001416		Panel, Decorator (wht)		Appelez-nous	-
1	99001445		Screw, Decorator Panel (wht)		Appelez-nous	-
2	99001415		Filler, Front Panel		Appelez-nous	-
3	99002176		Door, Outer		Appelez-nous	-
3	99001688		Ground Wire, Reinforcement		Appelez-nous	-
4	WP99002362		Spacer, Foam   (Replaces: 99002362)				$ 5.55
4	99002188		Retainer, Wire		Appelez-nous	-
5	99001899		Hinge (rt)		Appelez-nous	-
5	99001898		Hinge (lt)		Appelez-nous	-
5	99001075		Screw				$ 5.81
6	99002469		Spring, Door				$ 5.83
7	WP6-920580		Insulation, Door   (Replaces: 99002411)				$ 28.77
8	99002388		Door, Inner		Appelez-nous	-
8	99002499		Felt, Vent (door)				$ 32.11
8	Y912620		Screw				$ 5.48
8	99002547		Damper, Door (assembly)		Appelez-nous	-
9	Y913178		Seal, Reinforcement				$ 7.50
9	Y913093		Bar, Reinforcement		Appelez-nous	-
10	99002412		Insulation, Access Panel		Appelez-nous	-
10	99002548		Damper, Access Panel		Appelez-nous	-
11	WP912653		Link, Door Spring   (Replaces: 912653)			Immediately	$ 7.45
12	99002060		Panel, Access (wht)		Appelez-nous	-
12	99001194		Screw, Access Panel				$ 6.18
13	903233		Foam Strip, Insulation		Appelez-nous	-
14	WP489128		Screw-no.8x7/16 Hex Washer Head   (Replaces: 99002553)				$ 9.79
14	99001414		Shield, Tub		Appelez-nous	-
15	Y912620		Screw				$ 5.48
15	Y912910		Cover, Vent				$ 30.43
16	WP489128		Screw   (Replaces: 912365)				$ 9.79
16	99001444		Strap, Harness		Appelez-nous	-
17	Y912809		Shield, Access Panel (rt)		Appelez-nous	-
17	Y912810		Shield, Access Panel (lt)		Appelez-nous	-
17	99001194		Screw, Access Panel				$ 6.18
